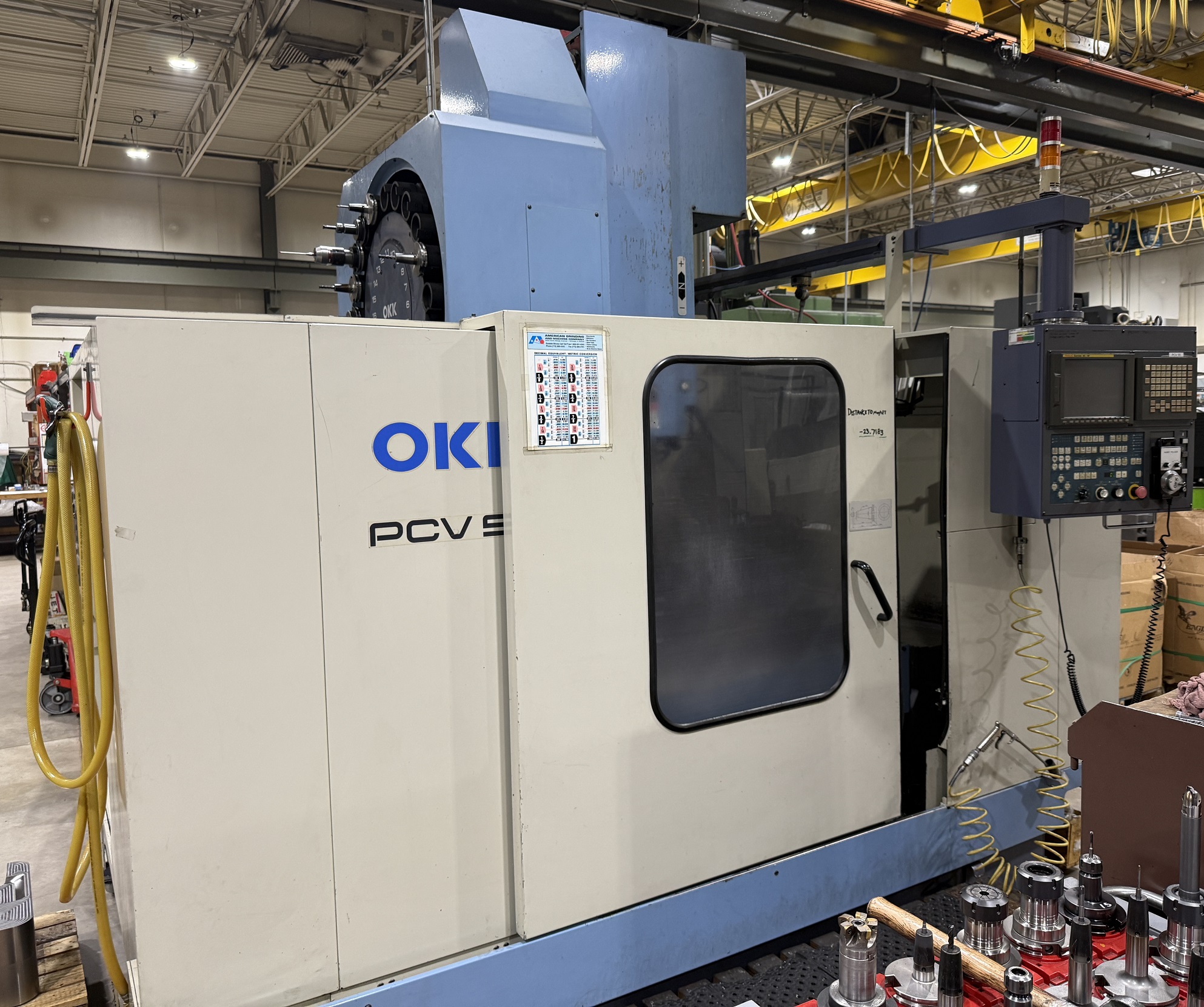

OKK PCV 55 Vertical Machining Center
Stock Number: 2102
OKK PCV 55
Age: 1998
Condition: As Is, Where Is
The OKK PCV Series are highly efficient vertical machining centers, representing the optimal balance of performance, cost and function.
Click to view larger photo
| Specification | Description |
|---|
| X-Axis Travel: | 40.1" |
| Y-Axis Saddle Travel: | 22.0" |
| Z-Axis Spindle Head Travel: | 20.5" |
| Distance Spindle Nose to Table: | 5.9" - 26.3" |
| Table Size: | 48" x 22" |
| Table Load Capacity: | 1,543 lbs |
| Rapid Traverse Rate (X,Y): | 787 IPM |
| Rapid Traverse Rate (Z): | 629 IPM |
| Cutting Feed Rate: | .1 - 393 IPM |
| Spindle Taper: | CAT 50 |
| Spindle Speeds: | 100 - 13,000 RPM |
| Spindle Drive Motor: | 30/15 hp |
| Automatic Tool Changer: | 20 Positions |
| Machine Weight: | 15,500 lbs |
| Air Requirement: | 80 PSI, 15 SCFM |
| Power Requirement: | 200-220V,3Phz,48KVa |
| Machine Size: | 165" x 128" x 121" Tall |
Equipped With:

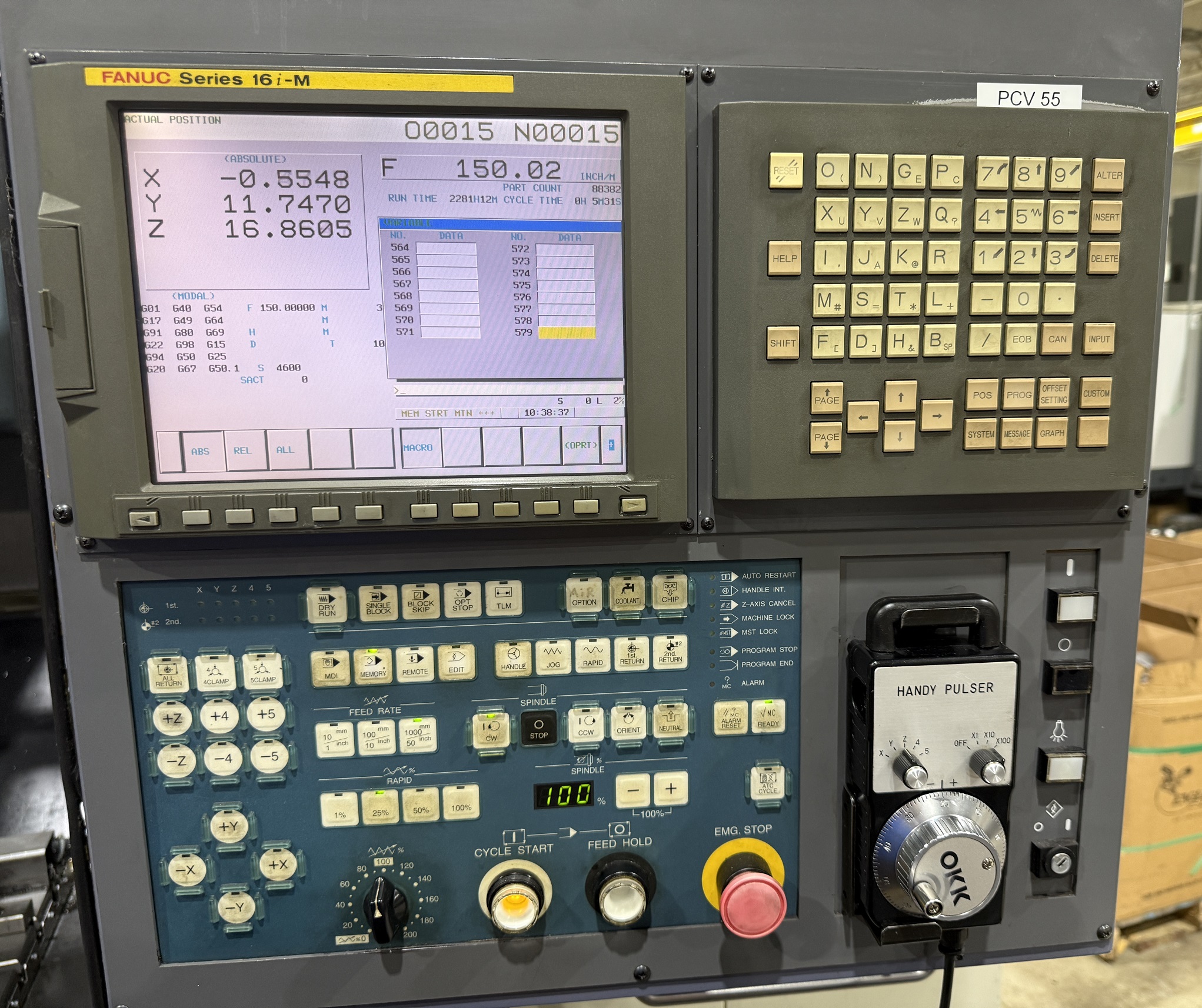

* Fanuc 16i CNC Control
* 13,000 RPM Geared Head Spindle (CAT50)
* Glass Scales (X,Y,&Z)
* 20 Position Automatic Toolchanger
* Rigid Tapping
* Spindle Oil Chiller
* Coolant System
* Helical Interpolation
* High Speed Mode 1B
* User Macro
* Transformer
* All Available Manuals and Accessories
** Tooling is NOT included with the machine
** Magnetic Worktable can be purchased for an additional amount
