Mitsubishi BA24 Wire EDM

Stock Number: 0493

Mitsubishi BA24

Age: 2008

Condition: As Is, Where Is

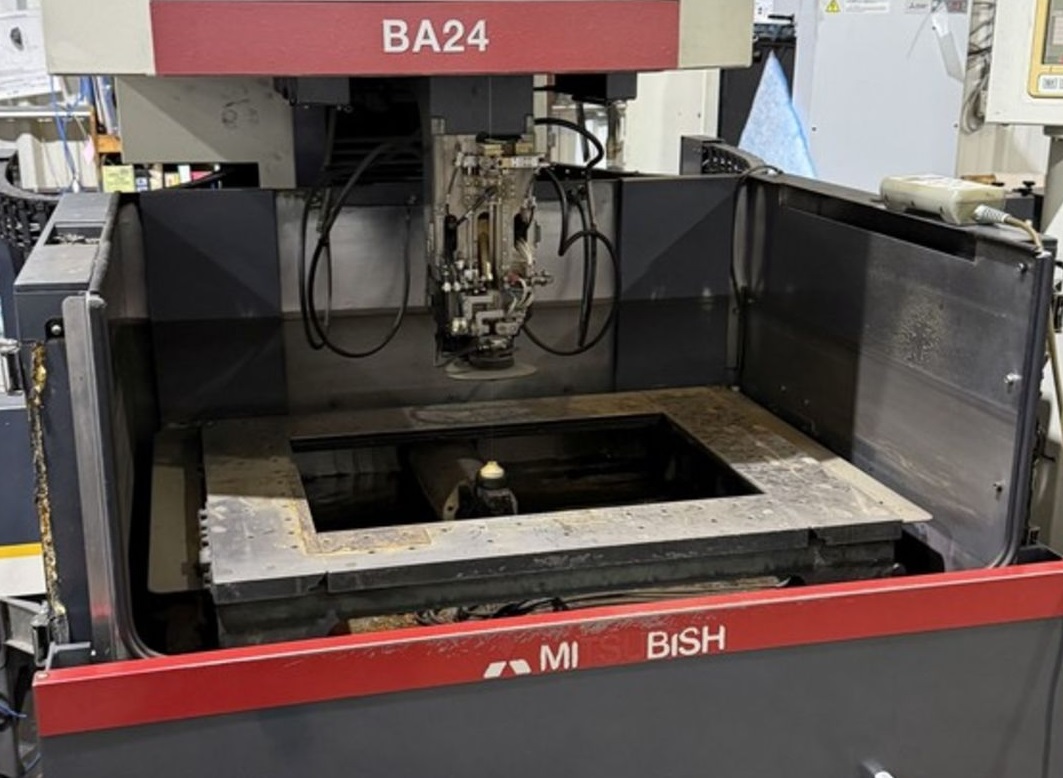

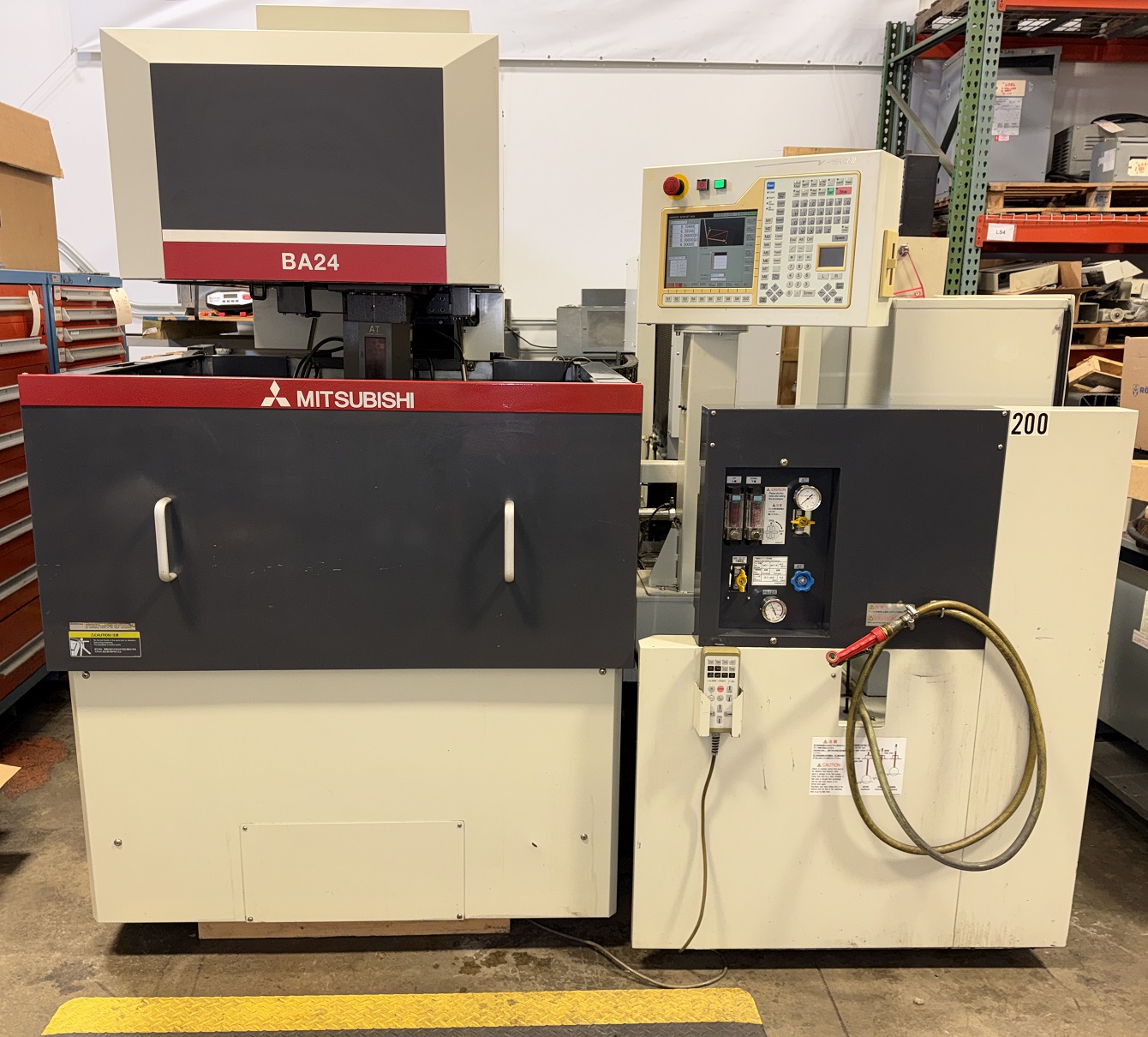

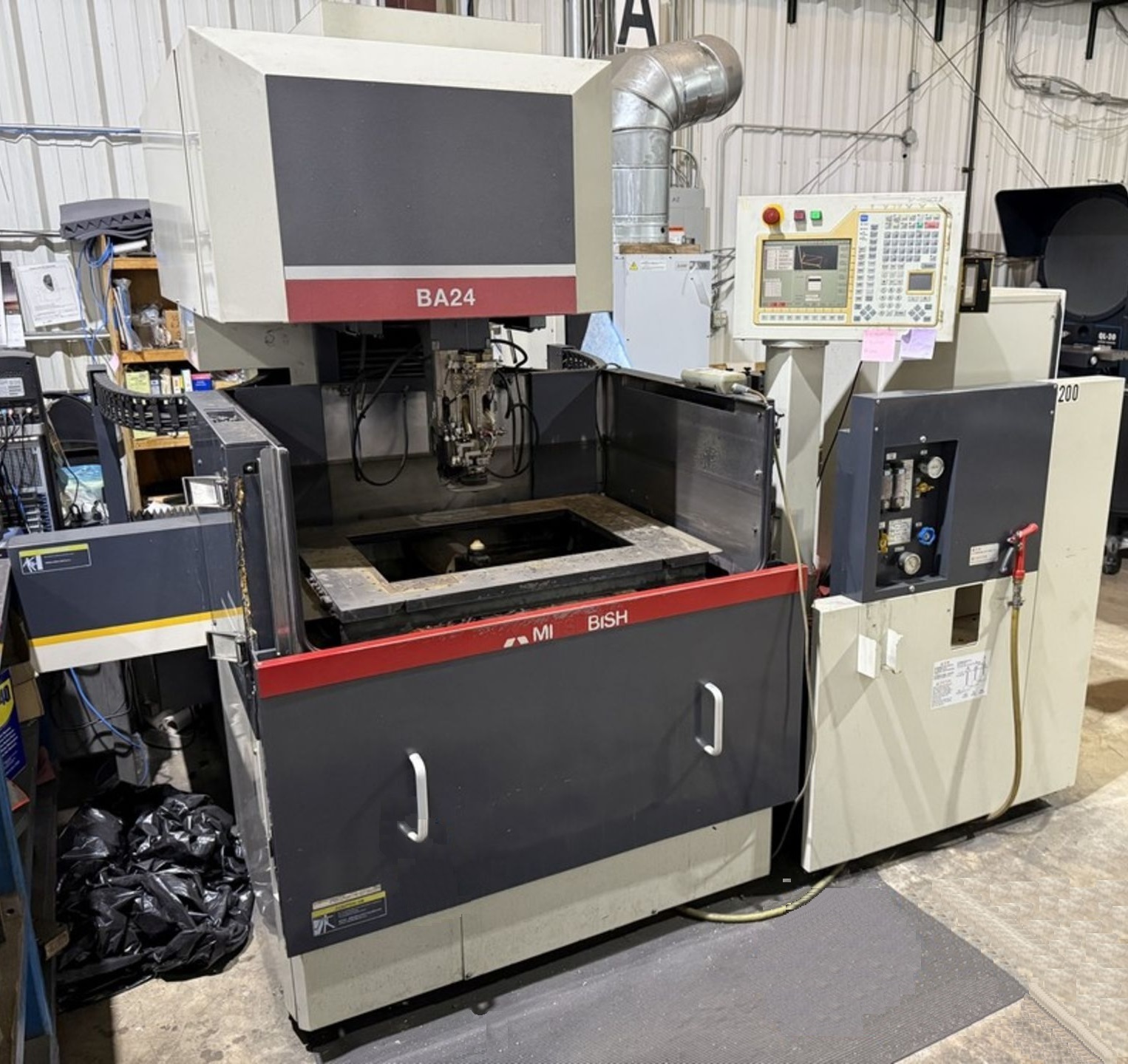

Mitsubishi BA24 Wire EDM The Mitsubishi BA24 is a large-capacity, wire EDM designed to accommodate a variety of machining needs, from parts to dies. The machine offers large X, Y, Z travel dimensions with a four-sided work table and all stainless steel work tank and fluid system. The BA24 maximizes cost efficiency, serviceability and compatibility.

Click to view larger photo

Specification	Description
Machine Travels (XYZ)	23.6" x 15.7" x 12.2"
Machine Travels (UV)	+- 3.0"
Table Dimensions	34.6" x 26.8"
Max Workpiece Dimensions	41.3" x 32.3" x 12.0"
Taper Dimensions	15 deg @ 10.5"
Wide Angle Taper Dimensions	45 deg @ 2.4"
Machine Resolution	0.00001"
Table Rapid Speed	51.2"/min
Wire Capabilities	0.004" - 0.012"
Wire Guides Included	0.010"
Minimum Start Hole Diameter	0.020" Dia
Max Wire Spool	22 lbs
Dielectric Capacity	211 gal
Electrical Requirement	200-220V/3Phz/13.5 kVA
Machine Shipping Dimensions	110" x 89" x 86"H
Machine Shipping Weight	7,700 lbs
Power Supply Dimensions	24" x 24" x 72"H
Power Supply Shipping Weight	645 lbs
Filtration System Dimensions	60" x 88" x 67"H
Filtration System Shipping Weight	661 lbs
Machine Footprint Dimensions	106" x 111" x 86"H
Total Shipping Weight	9,006 lbs

Equipped With:

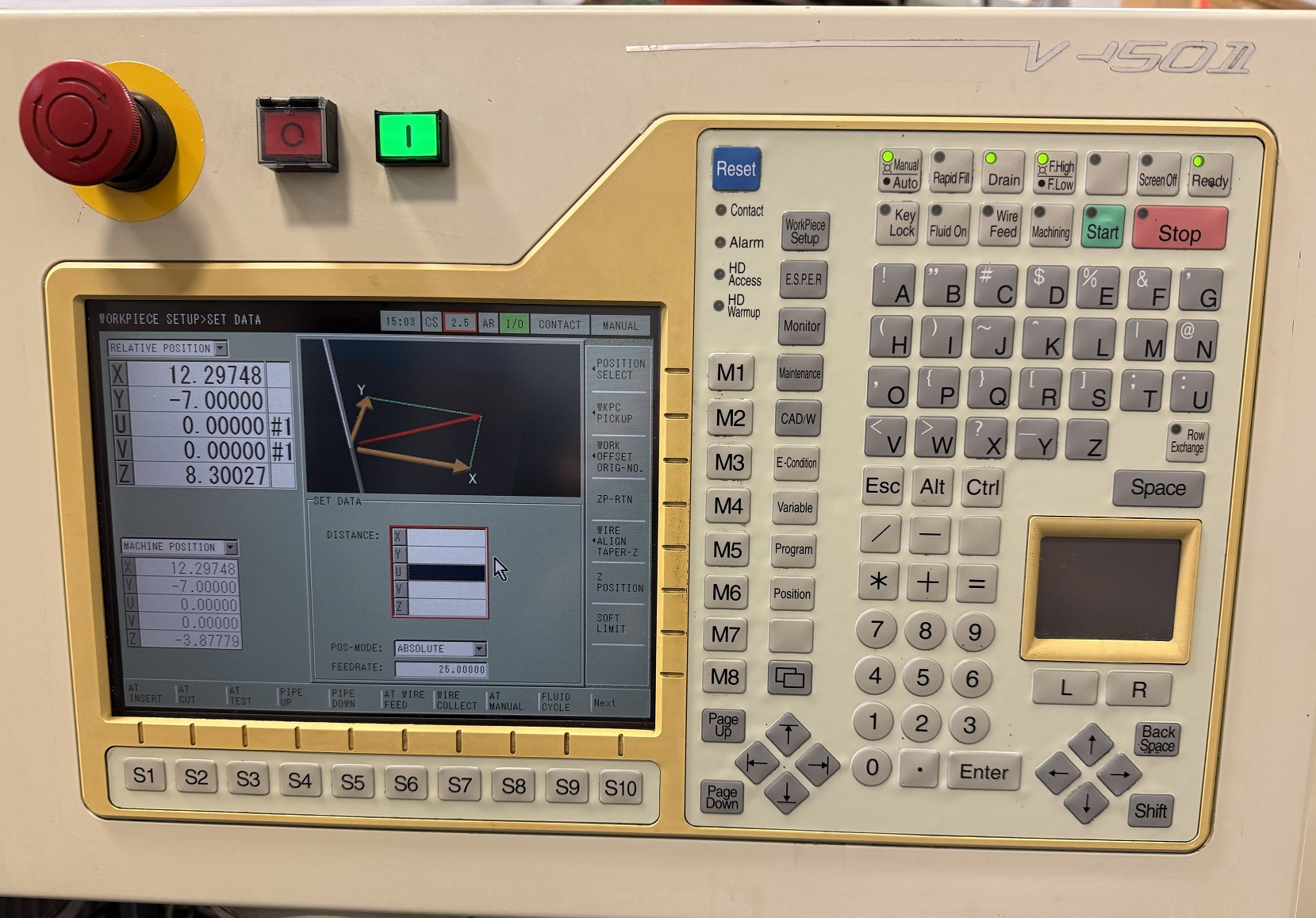

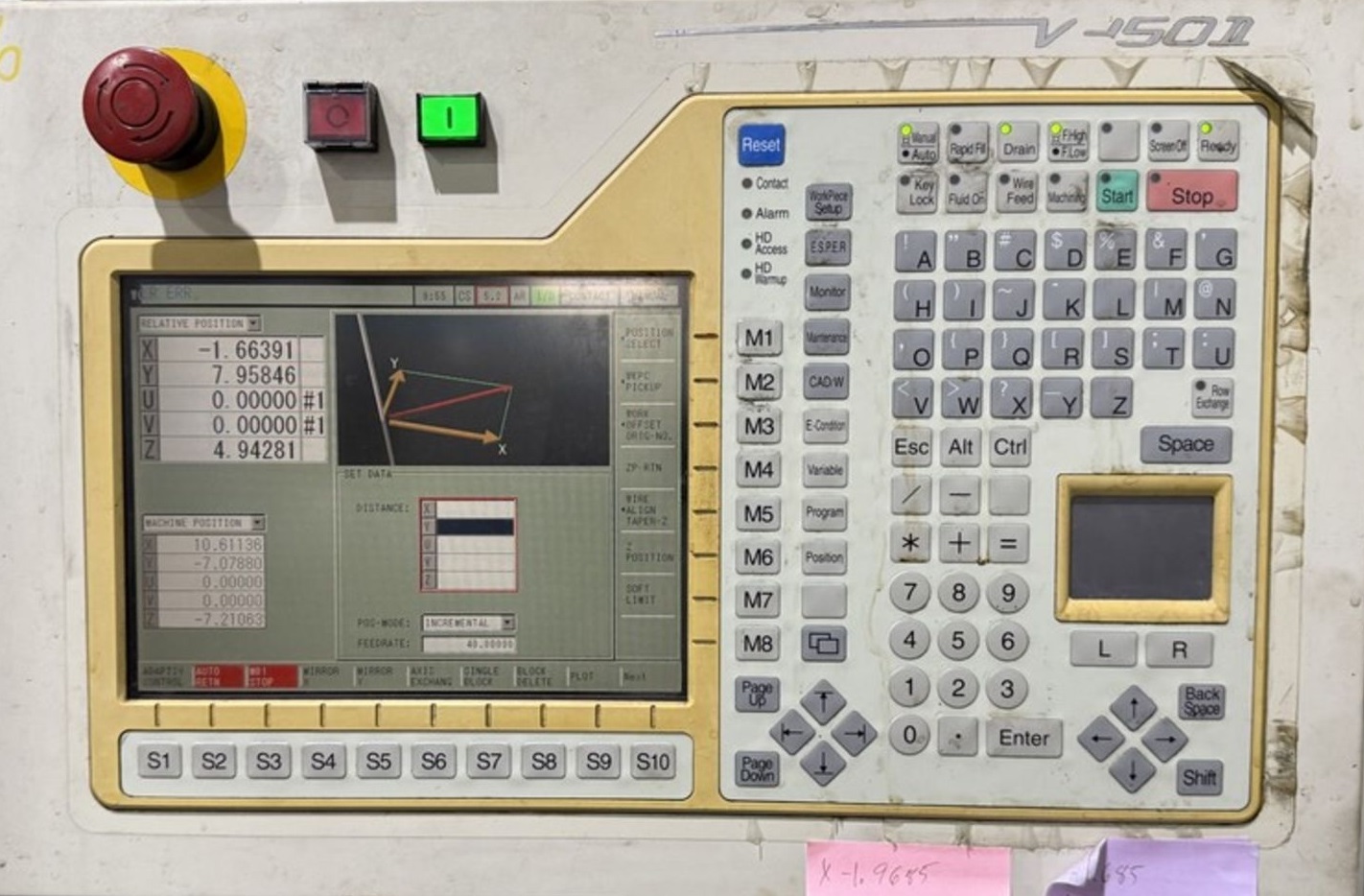

* Mitsubishi PM4 64-bit CNC Control * V350IV High Speed Anti-Electrolysis Power Supply * Automatic Wire Threader (AT2) * Submerged Machining Capability * 4-Sided Zeroline Table * 40GB Hard Drive * USB, Ethernet, & RS232 Input * Vertical Sliding Front Tank Door * Stainless Steel Worktank * Self-Cleaning Seal Plate * Remote Hand Pendant * Dielectric Filtration System * Electric Chiller * All Available Manuals and Accessories
