Mikron HSM 500 Vertical Machining Center
Stock Number: 2101
Mikron HSM 500
Age: 2011
Condition: As Is, Where Is
Machine Features:
Polymer concrete construction
Rugged monoblock portal design with a compact footprint
Powerful integral spindle with vector control provides high torque at low speeds
Tool changer with few moving parts
Excellent access to working area for operator or crane loading
Click to view larger photo
| Specification | Description |
|---|
| X-Axis Travel | 19.7" |
| Y-Axis Travel | 17.7" |
| Z-Axis Travel | 13.8" |
| Table Dimensions | 21.7" x 17.7" |
| Spindle Speed | 42,000 RPM |
| Rapid Traverse Rate | 1575 In/Min |
| Spindle Taper | HSK-E40 |
| Spindle Motor | 13 kW(8.8 HP) |
| Spindle Torque | 3.4Nm(2.51 lb-ft) |
| Tool Changer Capacity | 36 ATC |
| Machine Footprint | 149" x 99" |
| Machine Weight | 12,125 lbs |
Equipped With:

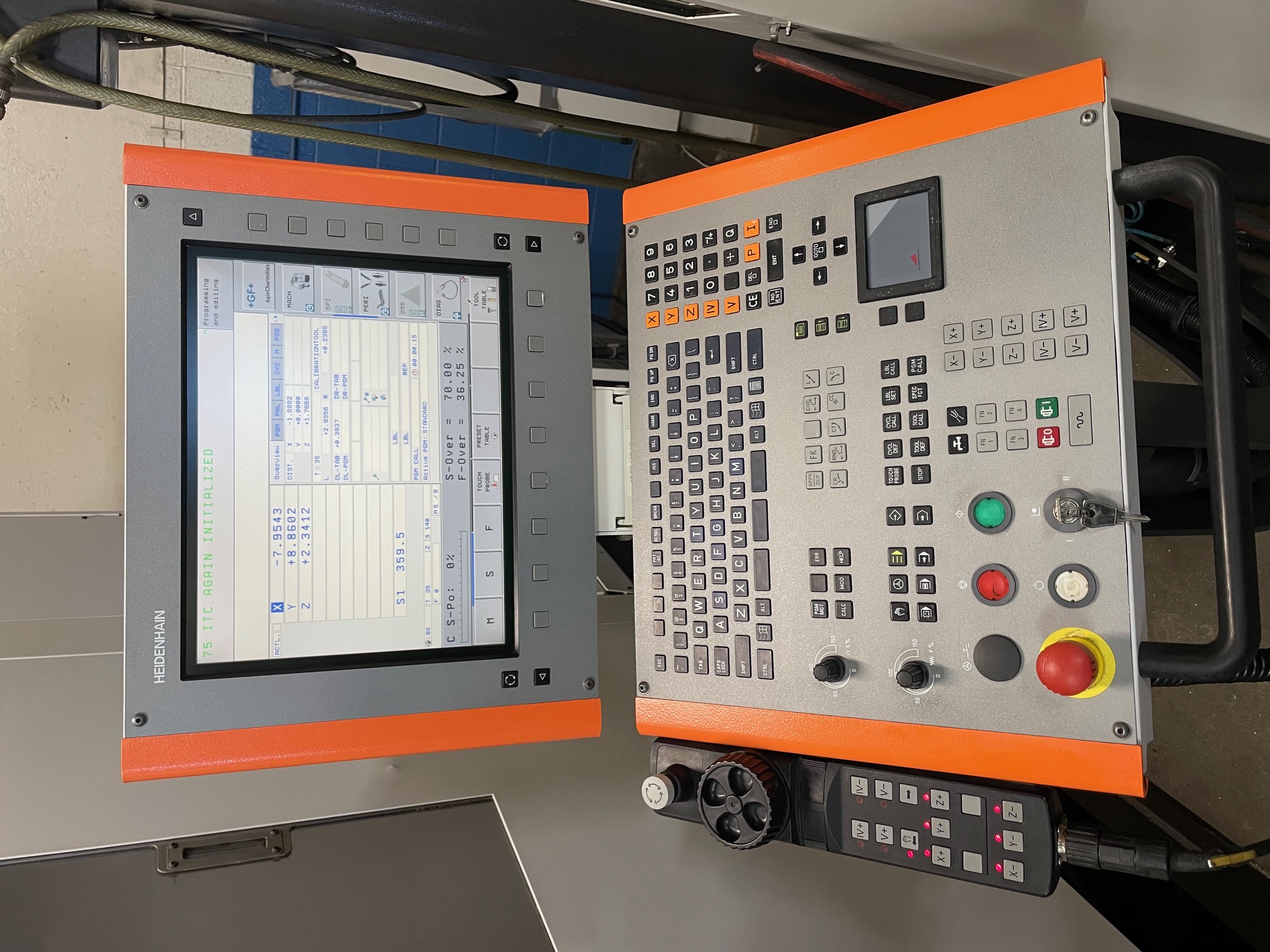

* Heidenhain iTNC 530 Control
* 36 Postion ATC (HSK40)
* High Resolution Glass Scales on All Axes
* 42,000 RPM Step-Tec HSK40 Spindle
* 36 Position Automatic Tool Changer
* Oil Mist Spray for Hard Milling
* Mistbuster Mist Extraction Unit
* Laser Tool Measuring System
* M&H Infrared PS 32.00 Touch Probe
* Chip Sump with Coolant Tank and Chip Flushing Gun
* Beacon Light
* Chiller
* Transformer
* All Available Manuals and Accessories

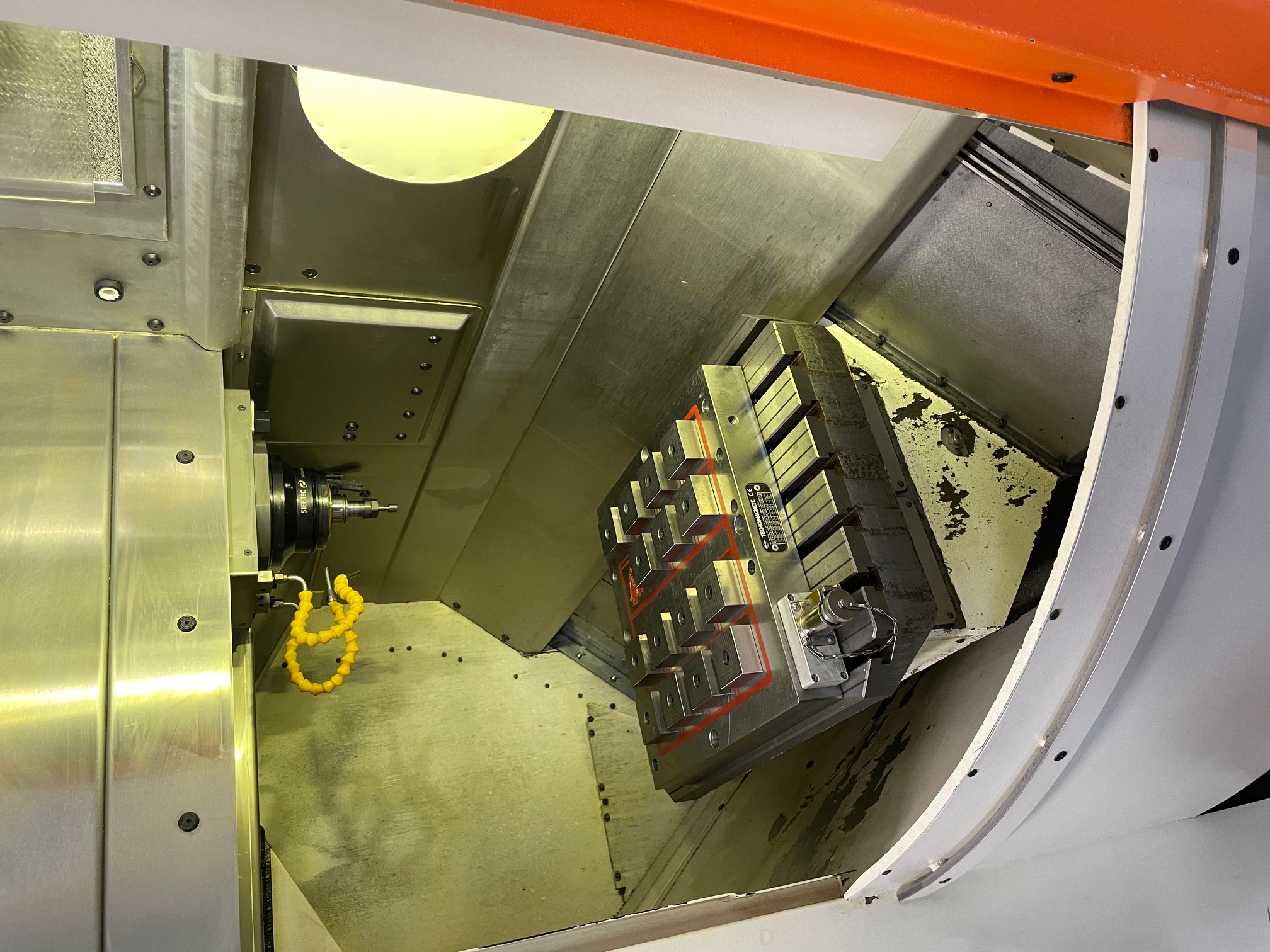

** Tooling and table magnet shown are NOT included with the machine
