Charmilles HD-8 EDM Hole Driller

Charmilles HD-8 EDM Hole Driller

Stock Number: 5031

Charmilles HD-8

Age: 1998

Condition: As Is, Where Is

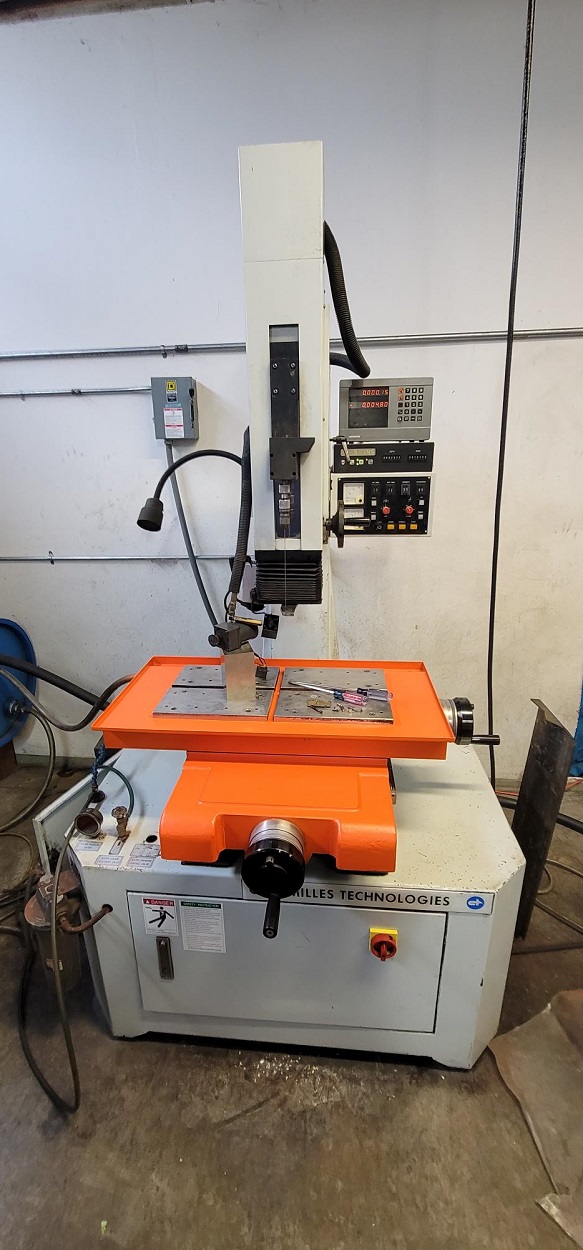

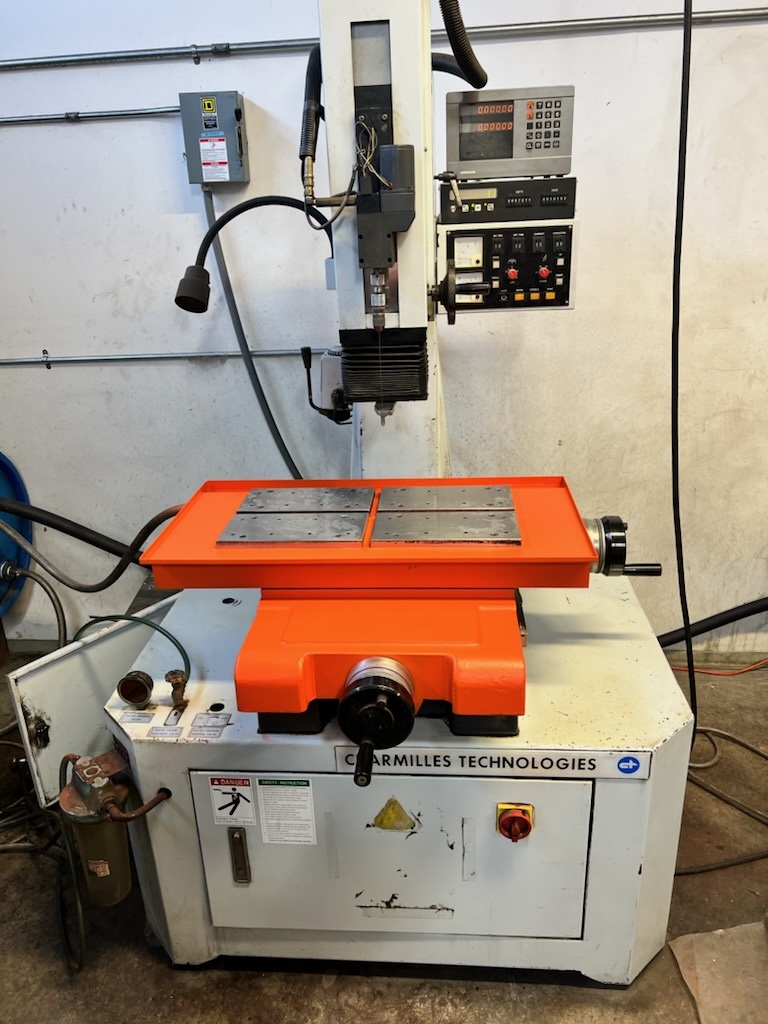

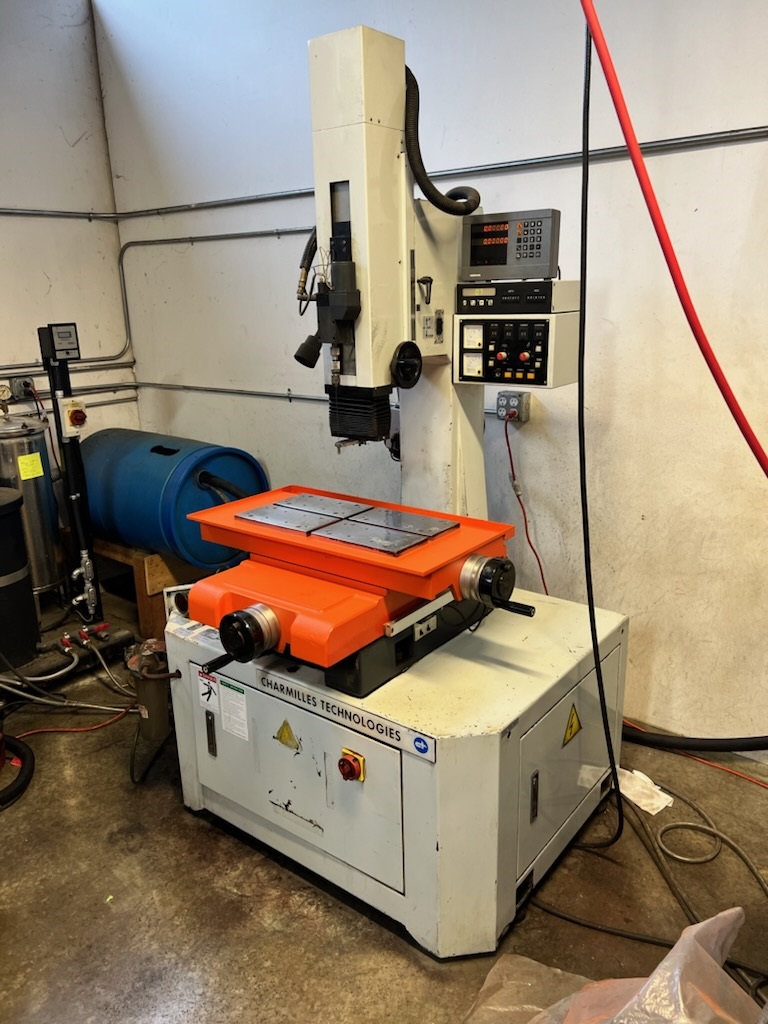

Click to view larger photo

SpecificationDescription
X-axis Travel`13.8"
Y-axis Travel9.8"
Z-axis Travel13.8"
Backslide Travel7.9"
Table Dimensions23.6" x 11.8"
Max Workpiece Dimensions25.5" x 11.8" x 11.8"
Max Height13.8"
Max Weight440 lbs
Electrode Range.020" - 0.120" (0.5mm - 3.0mm)
Dielectric Fluid TypeDistilled Water
Spindle Rotary Speed200 RPM
Power Supply25 AMP
Max Power Consumption3.5 KVA
Overall Dimensions48" L x 36" W x 94" H
Machine Weight1,800 lbs

Equipped With:
* Heidenhain 2-Axis Digital Readout * Auto Cycle Controls * 25 Amp Power Supply * Assorted Pipe Guides * Auto Z=0 Set * Auto Depth Setting * Analog Voltage & Amperage Guages * Pneumatic High Pressure Pump * Manual Lube System * Worklight * Transformer * All Available Manuals
