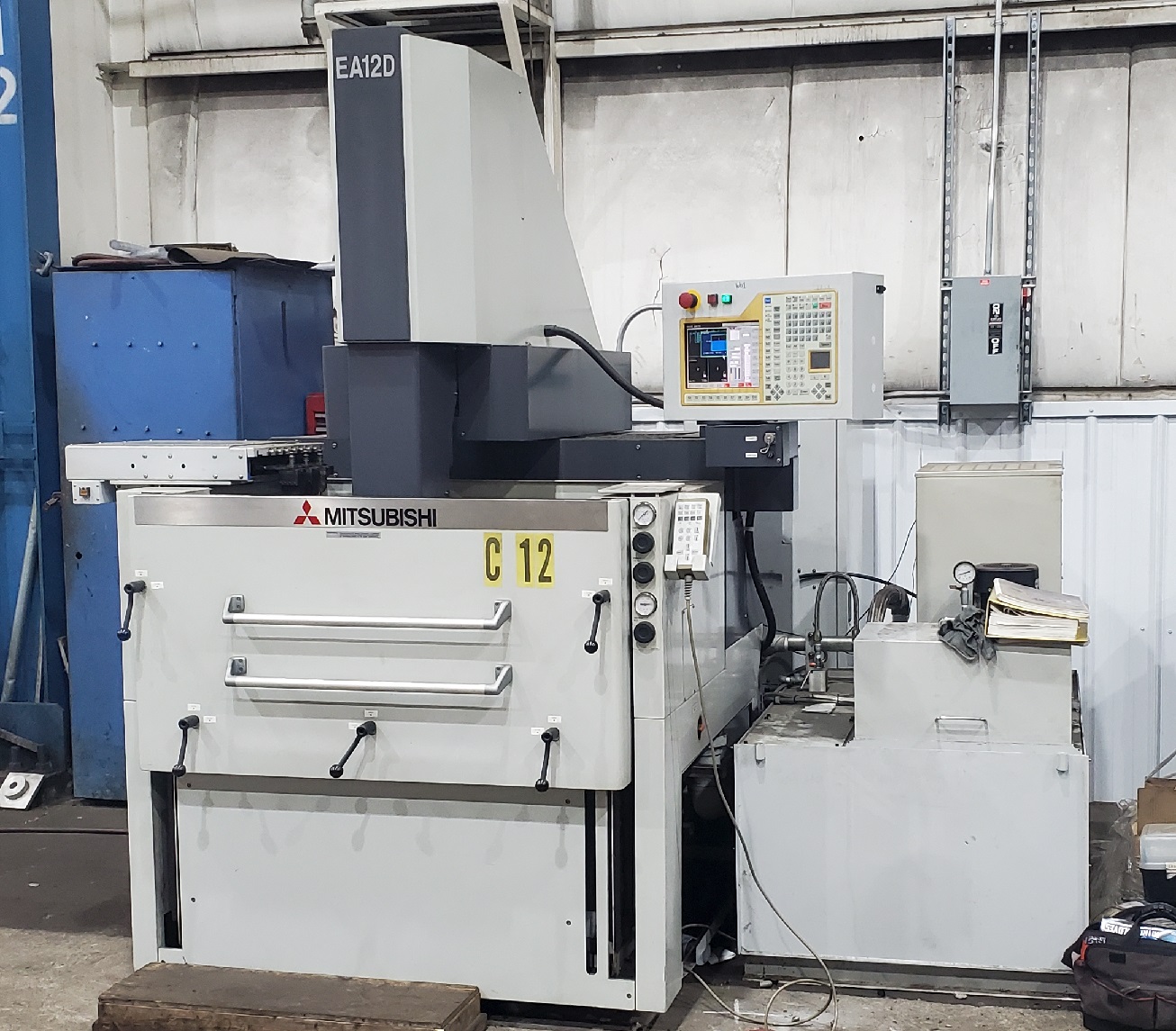

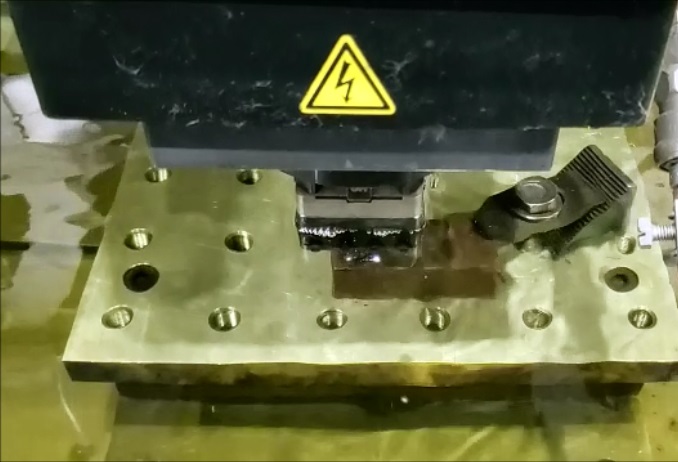

Mitsubishi EA12D CNC Sinker

Stock Number: 1134

Mitsubishi EA12D

Age: 2012

Condition: As Is, Where Is

Mitsubishi EA SERIES features: Fuzzy pro emulates an experienced operator optimizing the burn process from rough to finish orbit. High-speed jump creates the ability to do most burns with no flush. Saddle-less column movement system uses a special combined linear motion way system. New digital AC Smart Servo System improves resolution to 0.05 痠 (2 millionths inch) speeding response time. Fine Pulse 2 (FP2) function which operates in a pumping action to keep the gap clean, improves finish and reduces the power consumed. SC circuit reduces electrode wear by enacting pulse discharge during high-precision machining. PS circuit provides accurate finish by controlling surface pulse discharge.

Click to view larger photo

Specification	Description
Machining Stroke ( X x Y x Z )	15.7" x 11.8" x 11.8"
Worktank Internal Dimensions	41.3" x 27.5" x 17.7"
Dielectric Fluid Level (Max / Min)	15.7"/ 7.0"
Maximum Workpiece Dimensions	39.3"x 25.5" x 13.7"
Maximum Workpiece Weight	2,200 lbs
Table Dimensions	27.5" x 19.6"
Table to Platen Distance	11.8" x 23.6"
Machining Movement (C)	360 Degrees
C Axis Increment	0.001 Degree
Min. Command Input	.00001"
Resolution	.000002"
Tank Type	Fixed Tank
Worktank Access	Front Drop Door
Maximum Current	60 Avg Amps / 80 Peak Amps
Graphic Display	10.4" TFT Color LCD
Power Requirement	200-220/3/60
Maximum Electrode Weight	110 lbs / 11 lbs with C-Axis
Shuttle Type AEC	20 AEC
Rapid Traverse	78.74 IPM
Dielectric Capacity	132 Gal
Installation Dimensions (W x D )	91.5" x 87.2"
Total Shipping Weight	6,889 lbs
Machine Tool Dimensions ( L x W x H )	72.4" x 80.7" x 93.5"H

Equipped With:

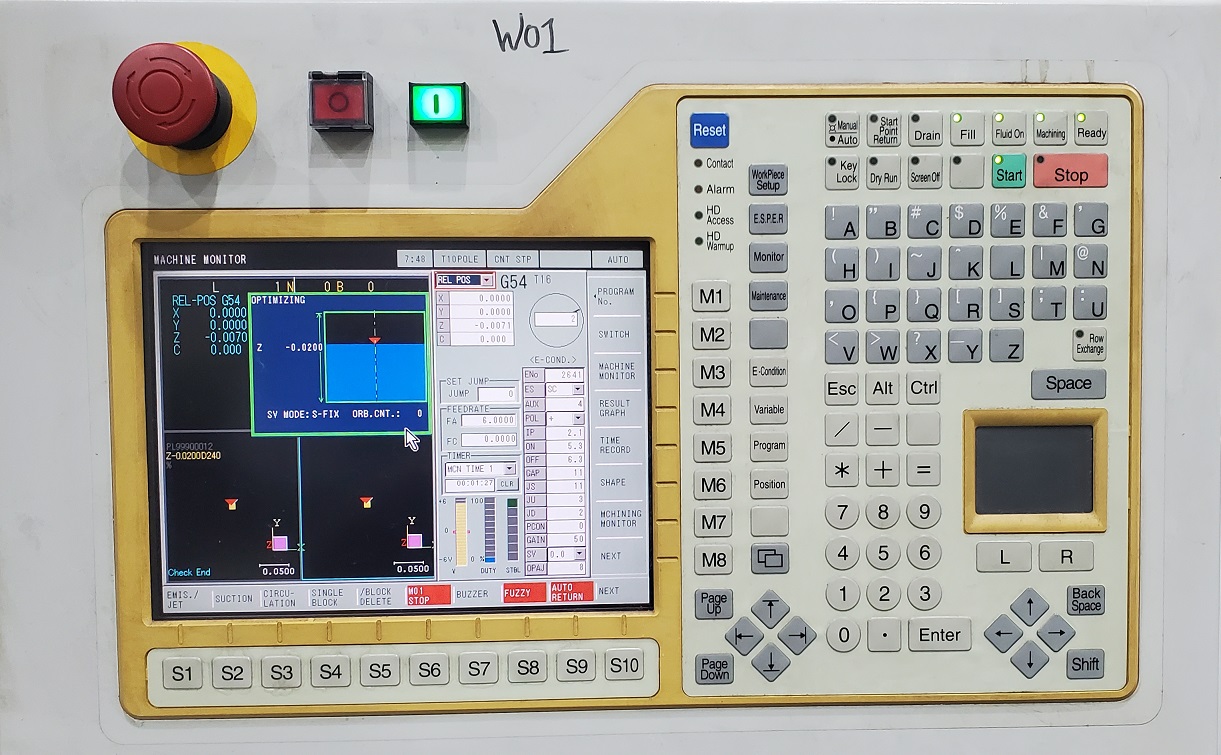

* Mitsubishi M700 64 Bit Fuzzy Logic CNC Control W/14" LCD * C Axis (System 3R Combi) * 4/7 Position Automatic Tool Changer (System 3R Macro/Macro Jr) * High Speed Jump Cycle * Fuzzy Pro3 Plus Orbit Pro * E.S.P.E.R. Programming * Fixed Table Traveling Column Design * Rotary Glass Scales(X,Y), Linear Glass Scale(Z) * 80 AMP FP60EA Power Supply * Remote Hand Controller * Auto Lubrication * 10MB User Program Storage On Hard Drive * RS-232C Port and Ethernet Port for DNC * Auto Fill & Drain * Dielectric Tank With Pump and Filtration * Electric Chiller * Sub-table fixture included * All Available Manuals and Accessories ** 3R tooling pictured is NOT included with the machine.
