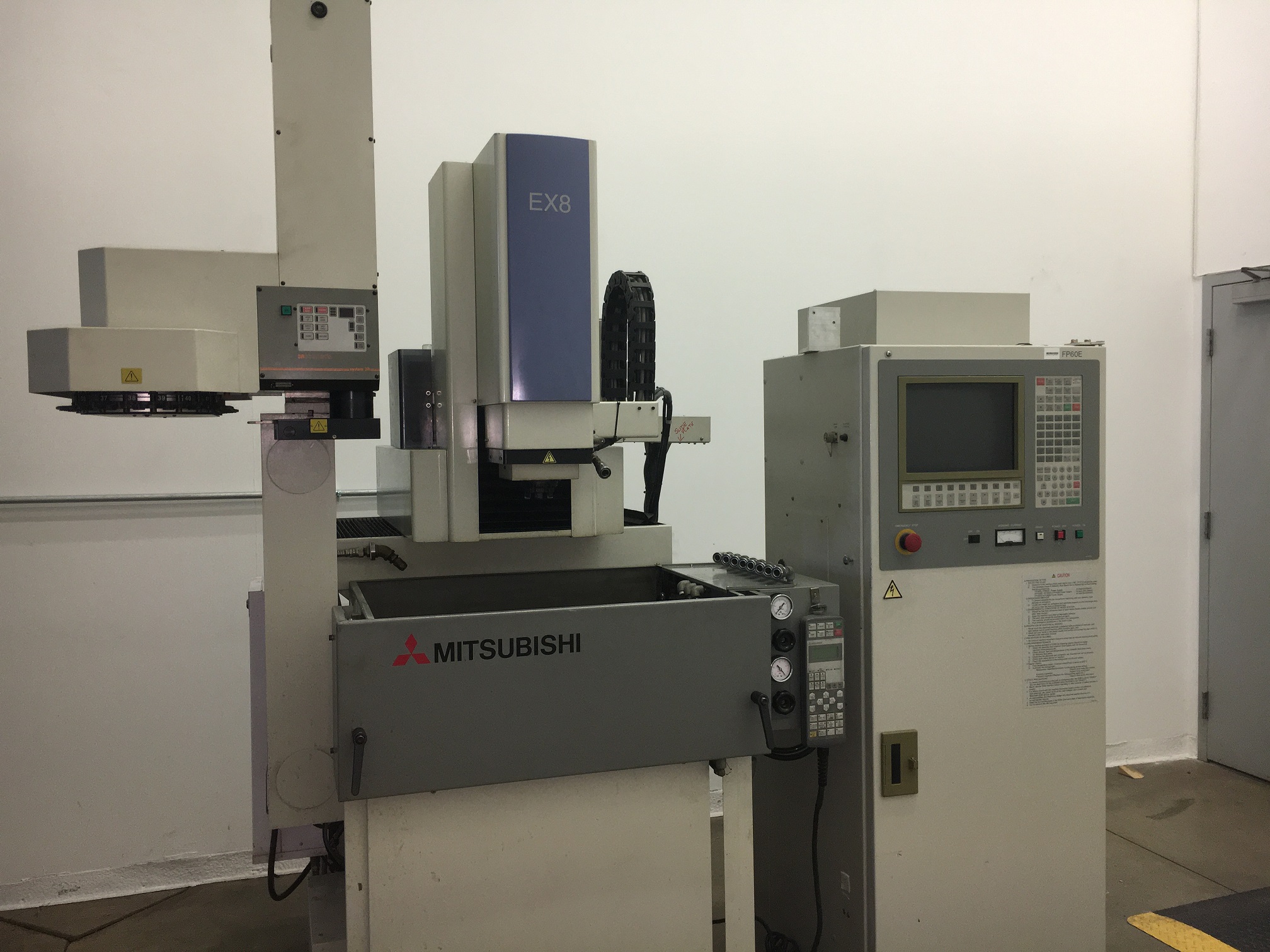

Mitsubishi EX8 CNC Sinker
Stock Number: 1146
Mitsubishi EX8
Age: 1998
Condition: As Is, Where Is
The Mitsubishi EX series comes standardly equipped with the "Fuzzy Logic" control that automatically adjusts machining conditions and incorporates the knowledge of a highly skilled operator. It does this by detecting minute variations in the workzone through the use of a high performance sensor (MF) and a 32-bit microprocessor. The FP power supply dramatically reduces finishing time, minimizes excessive wear and poor finish due to machining waste and excels while doing large-area finishing applications. All of this in a small, space saving design that will work in almost any toolroom.
Video Available - https://www.youtube.com/watch?v=g3ZM_enXsTg
Click to view larger photo
| Specification | Description |
|---|
| Machining Travels ( X x Y x Z ) | 11.81" x 9.84" x 9.84" |
| Machining Travels (C) | 0-360 deg |
| Table Size | 21.65" x 13.77" |
| Worktank Size | 24.08" x 16.53" x 15.9" |
| Maximum Workpiece Size | 35.43" x 23.62" x 11.81" |
| Maximum Workpiece Weight | 2,200 lbs |
| Maximum Current | 60 Amps |
| Electrode Postions (Macro/Macro Jr) | 16/32 |
| Maximum Electrode Weight | 55 lbs |
| Electrical Requirements | 208V/3Phz/60Hz |
| Machine Weight | 2640lbs |
| Machine Dimensions | 90" x 88" x 80"H |
Equipped With:

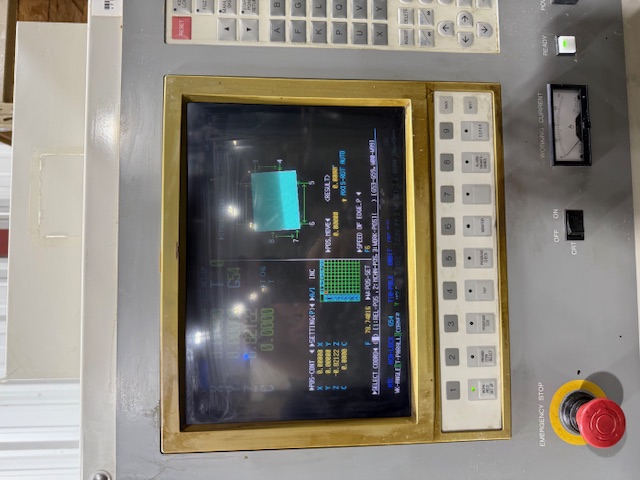

* Mitsubishi Fuzzy Logic Control
* C-Axis (System 3R Combi)
* 16/32 Position Automatic Electrode Changer
* 8 Position Programmable Flushing
* FP60E Power Supply
* Table Fixture
* Dielectric Filtration System
* Electric Chiller
* All Available Manuals and Accessories
