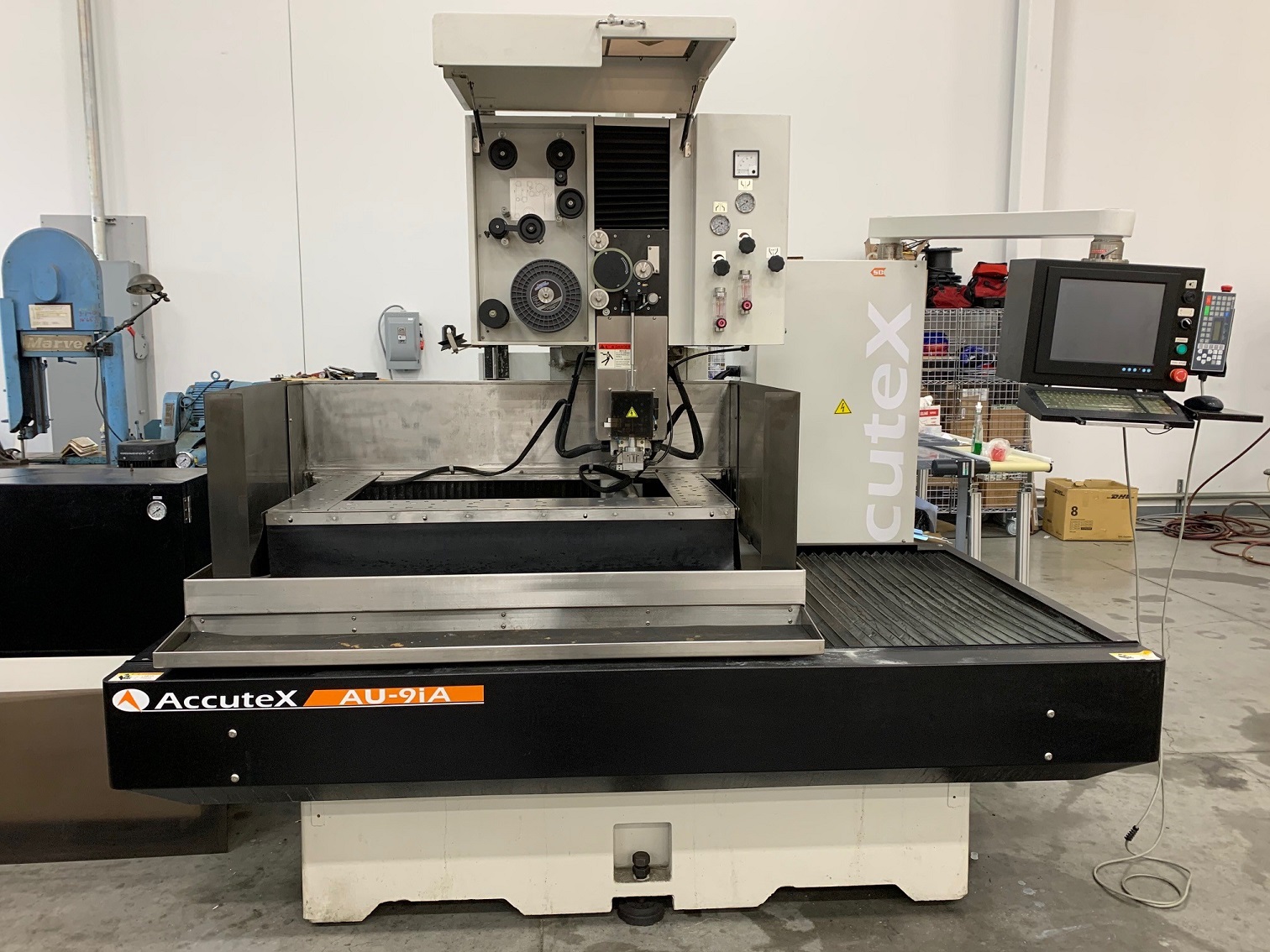

Accutex AU-9i Wire EDM

Stock Number: 0340

Accutex AU-9i

Age: 2017

Condition: As Is, Where Is

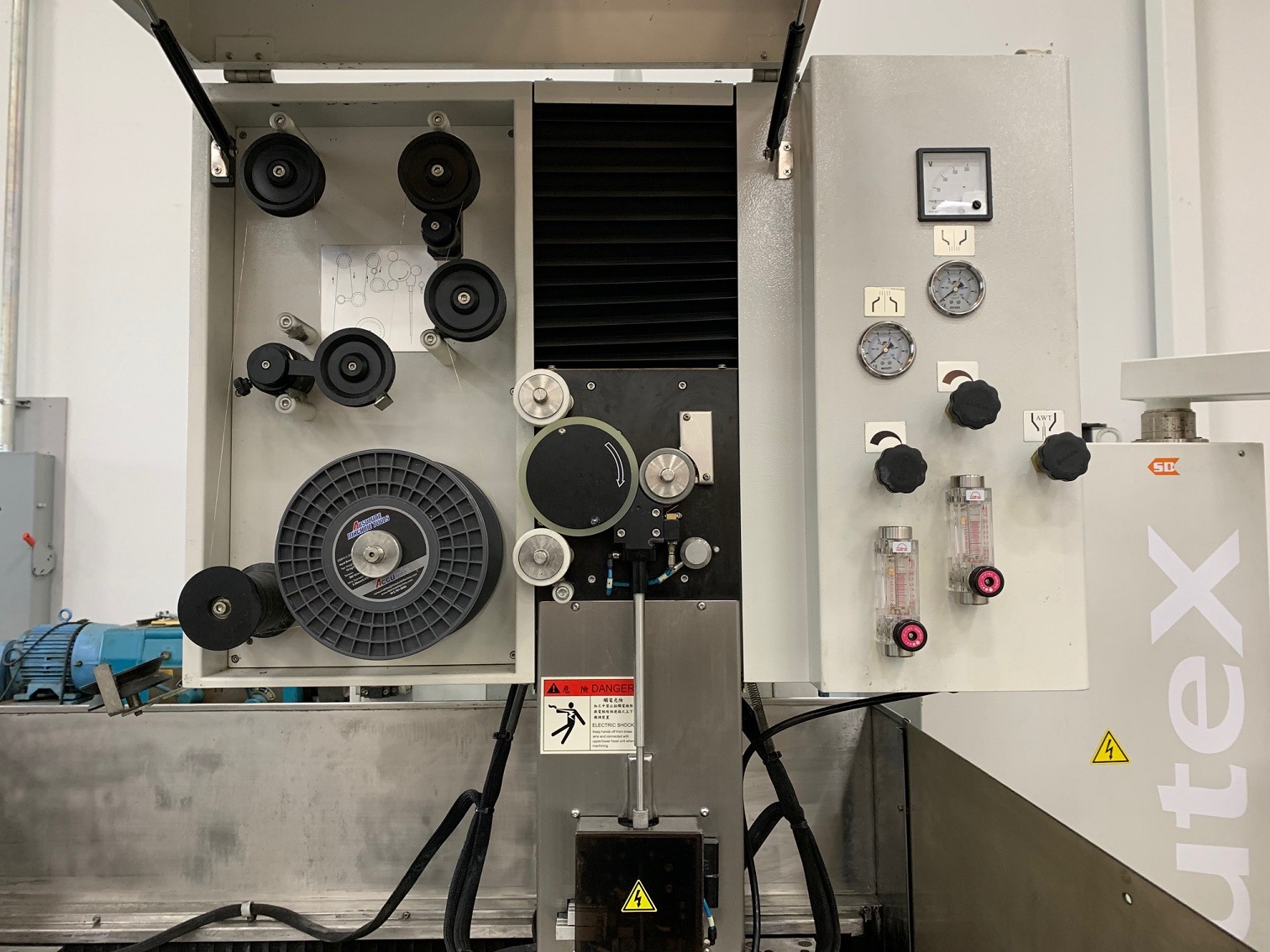

Features of the Accutex AU-9i Wire EDM * Meehanite cast honeycomb-type base, highly-ribbed column * 1.260 inch dia. C1 class ball screws * ACservomotors * 4 millionths linear glass scale feedback system * Hiwin linear guideways * 3 sided zero-line worktable is made of hardened stainless steel * An annealing, fully automatic wire threading system (AWT) with a scrap wire disposal unit - the world's fastest and most reliable automatic wire threading system on the market * Windows CE based CNC 64 bit CPU Control with a 15" touch screen

Click to view larger photo

Specification	Description
Controlled Axis	X, Y, Z, U, V
X, Y, Z Travel	35.4" x 23.6" x 11.8"
U, V Travel	3.9" x 3.9"
Rapid Traverse	40.0"/min
Taper Angle (w/wide angle guides & nozzles)	+/-45 Degrees
Maximum Workpiece Size (X, Y, Z)	54.2" x 29.9" x 11.6"
Maximum Workpiece Weight	4,890 lbs
Wire Diameter Range Capability	0.006 - 0.013"
Max Wire Spool Size	100 lbs
Water Dielectric Tank Capacity	100 Gallons
Electrical Power Required	220V/3Phz/60HZ/15KVA
Floor Space (WxDxH)	128" x 126" x 90"H
Machine Weight	11,880 lbs

Equipped With:

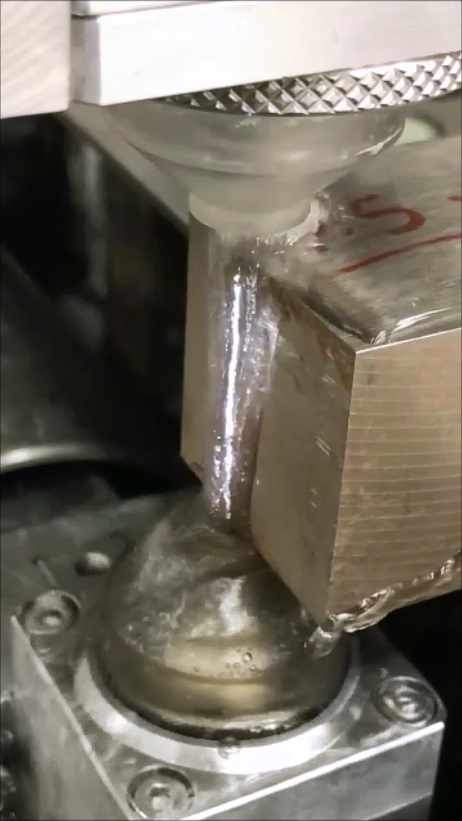

* 64 Bit Windows CE Based CNC Control * 15" Color Touch Screen * Keyboard, RS-232C, Ethernet, and USB Port * Automatic Wire Feed System * Non-Submerged Cutting Capability * Anti-Electrolysis Power Supply (AC) * Fagor Linear Glass Scales * 5 Controllable Axes * Large Wire Spooler Option * Electric Chiller * All Available Manuals and Accessories
