AgieCharmilles Cut E350 Wire EDM

AgieCharmilles Cut E350 Wire EDM

Stock Number: 0435

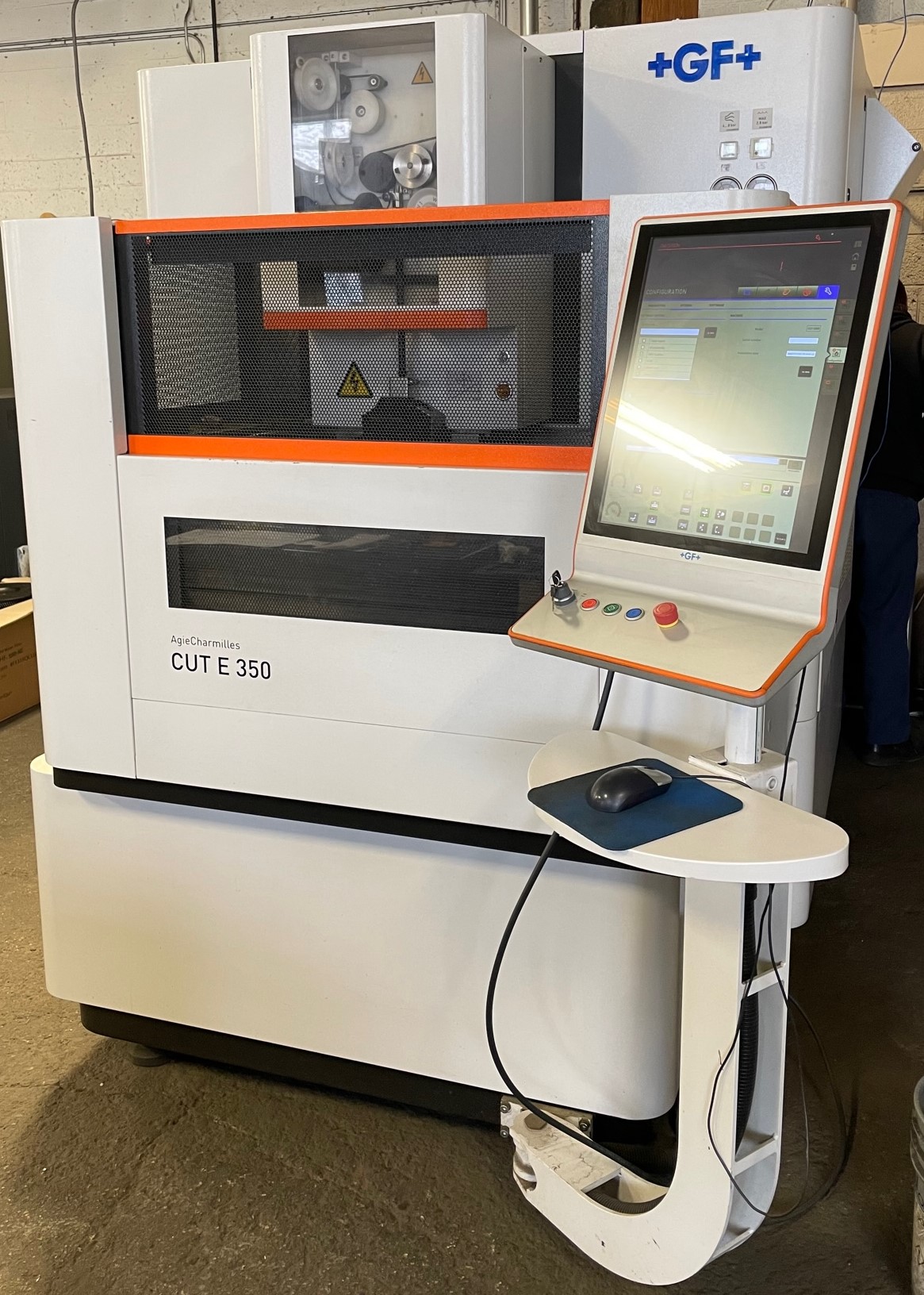

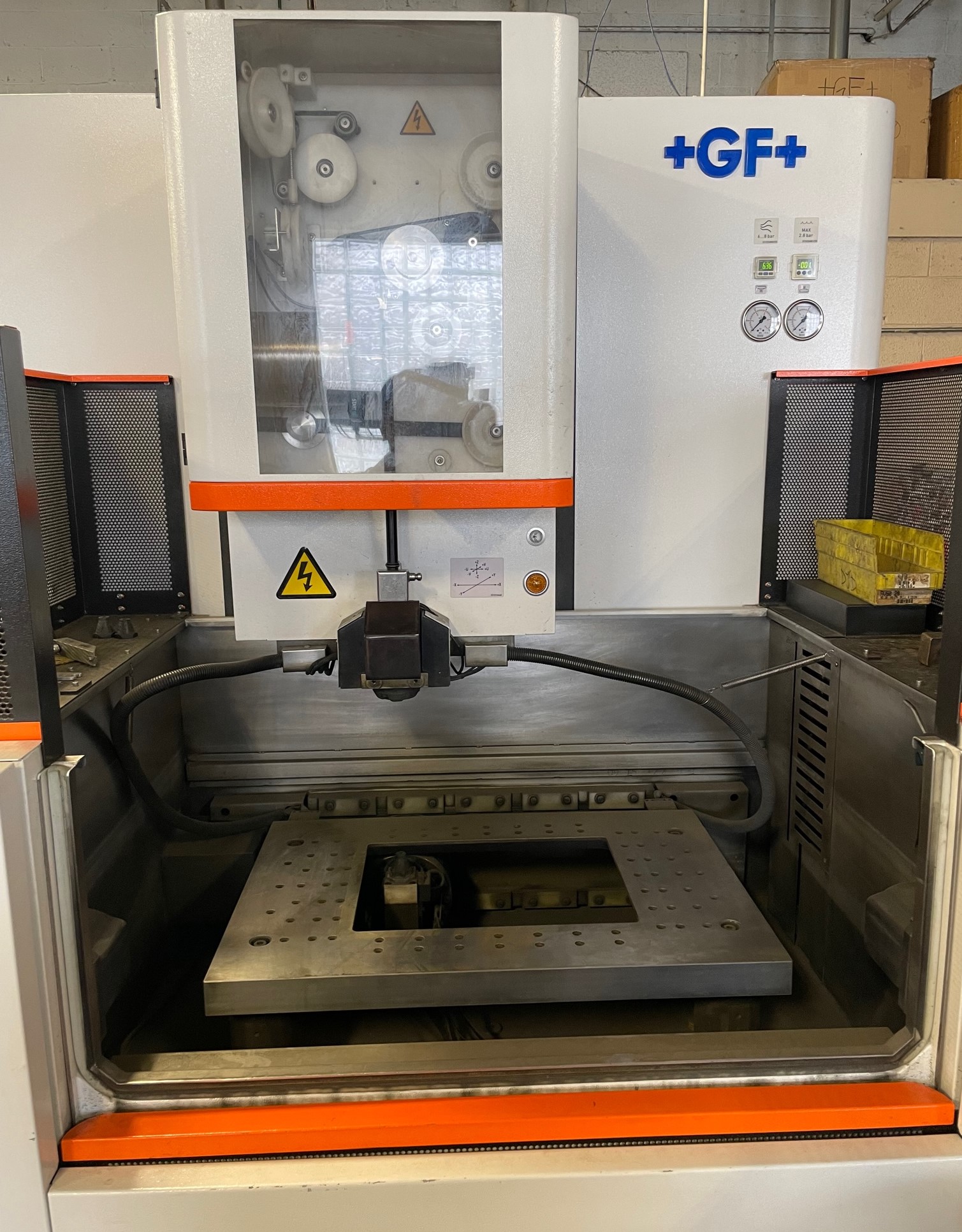

AgieCharmilles Cut E350

Age: 2016

Condition: As Is, Where Is

The AgieCharmilles CUT E Series puts efficiency at the touch of your finger with a smart, easy-to-use human-machine interface (HMI) and onboard technologies that streamline your job setup. Thanks to the digital Intelligent Power Generator (IPG), cutting speed and surface finish are improved.


Click to view larger photo

SpecificationDescription
X,Y,Z Travels13.78" x 9.84" x 9.84"
U, V Travel±45 (±1.77)
Taper angle/height±30/2.20" or ±25/3.78"
Max. Part dimensions32.28" x 26.77" x 9.64"
Max. Part Weight882 Lbs
Speed of axis movement (XYZ)0-118.1 ipm
Anti-collision protection for axesX, Y, Z
X, Y, U, V, Z measurement resolutionµ-inch 3.94"
Wire Diameter Range.004" - .012"
Dimensions of complete equipment68.9" x 97.24" x 86.61"
Total weight of equipment without dielectric5567 Lbs

Equipped With:

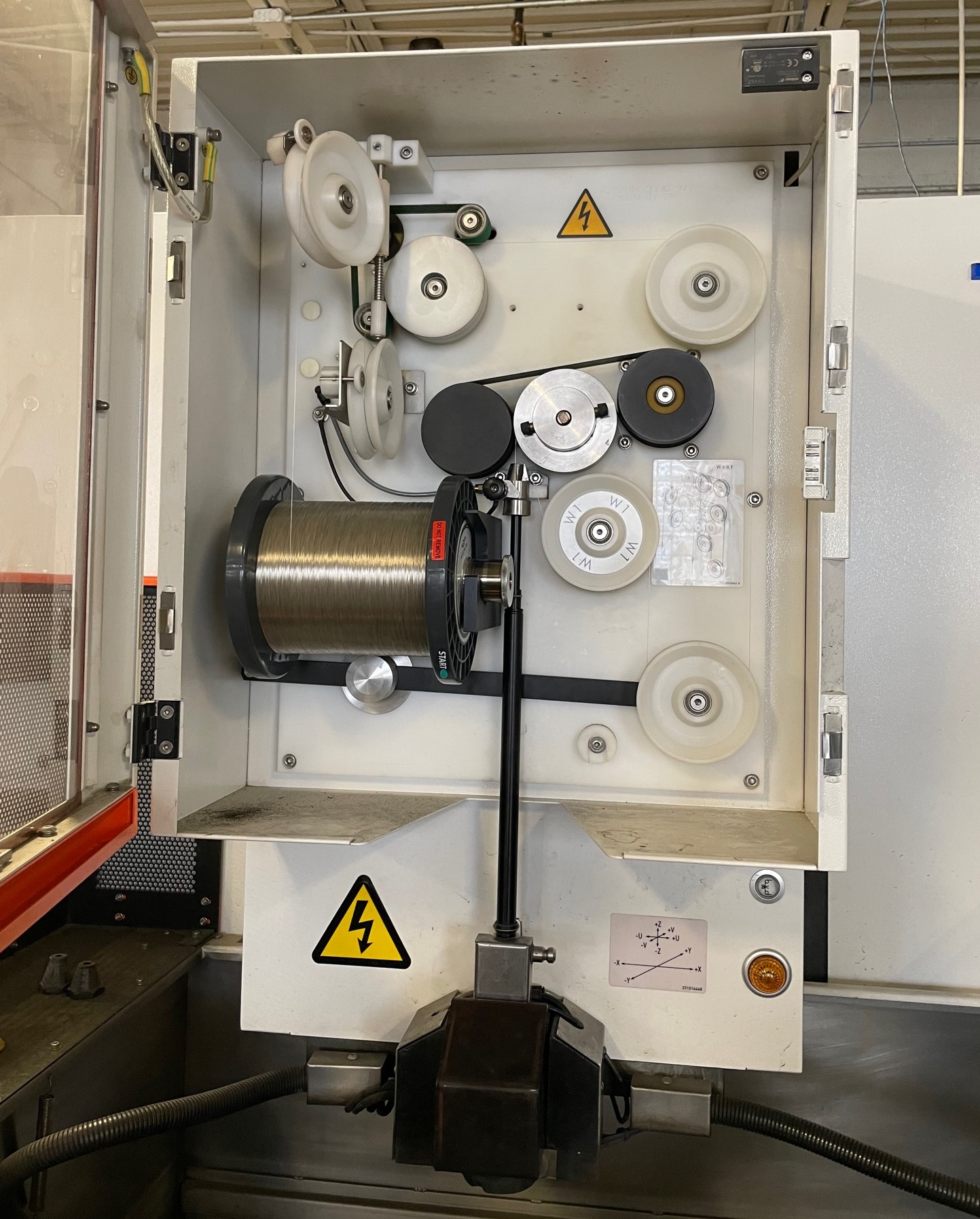

* AC Cut HMI Control W/ 19" Touchscreen Control * IPG-V Generator with HMI2 Control * Auto Wire Threading * Submerged * Glass Scales * Chiller * Transformer * All Available Disks and Manuals
