Mitsubishi FA-10S Wire EDM

Stock Number: 0453

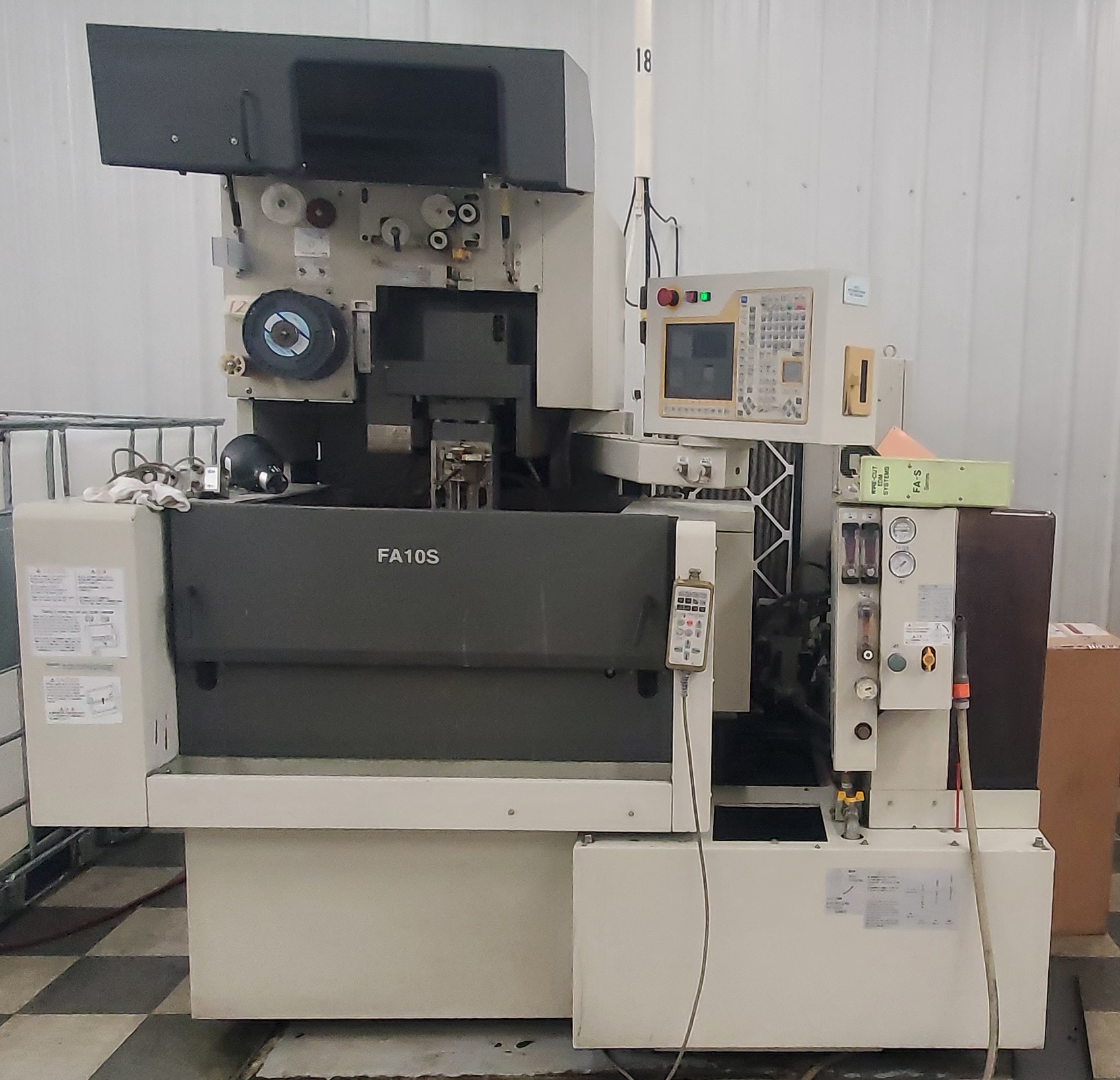

Mitsubishi FA-10S

Age: 2005

Condition: As Is, Where Is

The FA Series showcases Mitsubishi's continuous dedication to high precision. Die machining has never been as simple as it is now, with the FA Series' anti-electrolysis technology. Power Master makes parts with varying thicknesses and shapes faster and easier, saving up to 50% machining time over previous models.

Click to view larger photo

Specification	Description
Machining Stroke (X x Y x Z)	13.8" x 9.8" x 8.6"
Table Size	23.2" x 20.2"
Maximum Workpiece Size	31.5" x 23.6" x 8.5"
Maximum Workpiece Weight	1,105 lbs
Machining Stroke (U x V)	ą1.25" x ą1.25"
Taper Capacity	+-30 deg max / +-15deg @ 4"
Wire Diameter Range Possible	0.004"~0.012"
Wire Guides Included	.010"
Min Hole Diameter for Autothread	.020"
Max Wire Spool Size	22 lbs
Filter Tank Capacity	116 gal
Machine Shipping Dimensions	62" x 66" x 76"H
Machine Weight	4,400 lbs
Approximate Overall Dimensions	77.7" x 81.6" x 80.71"
77.7" x 81.6" x 80.71"	4,400 lbs

Equipped With:

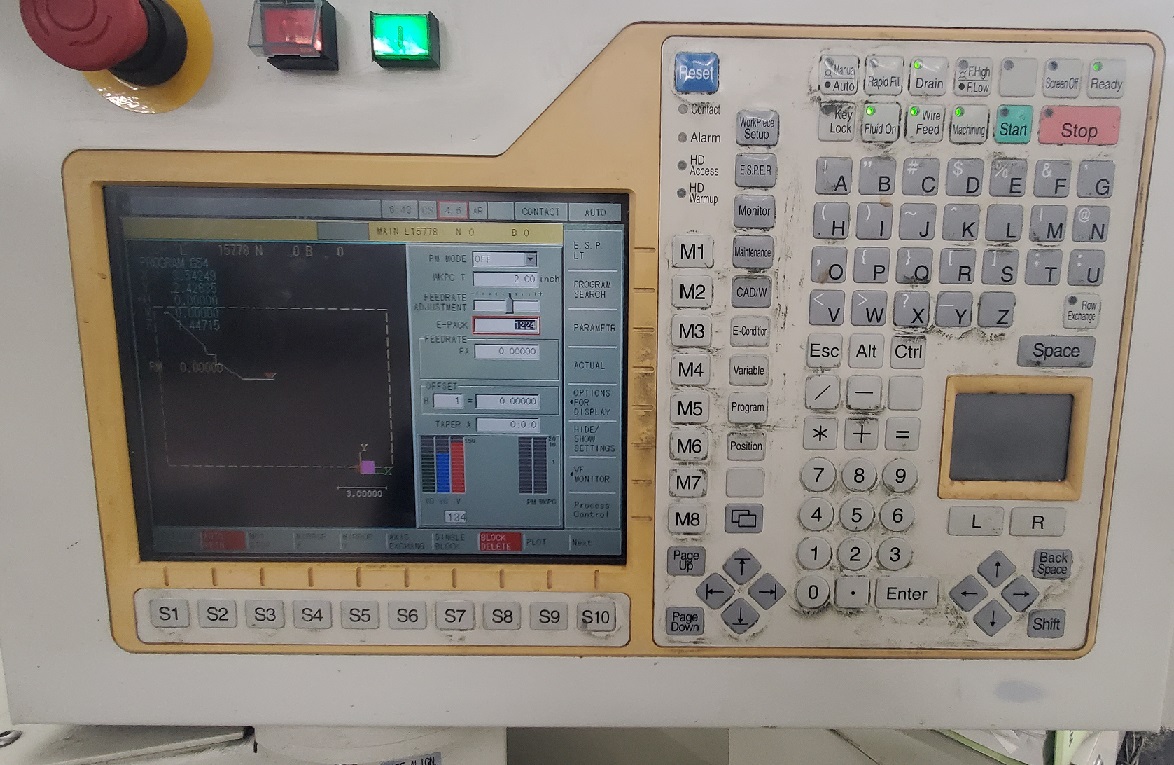

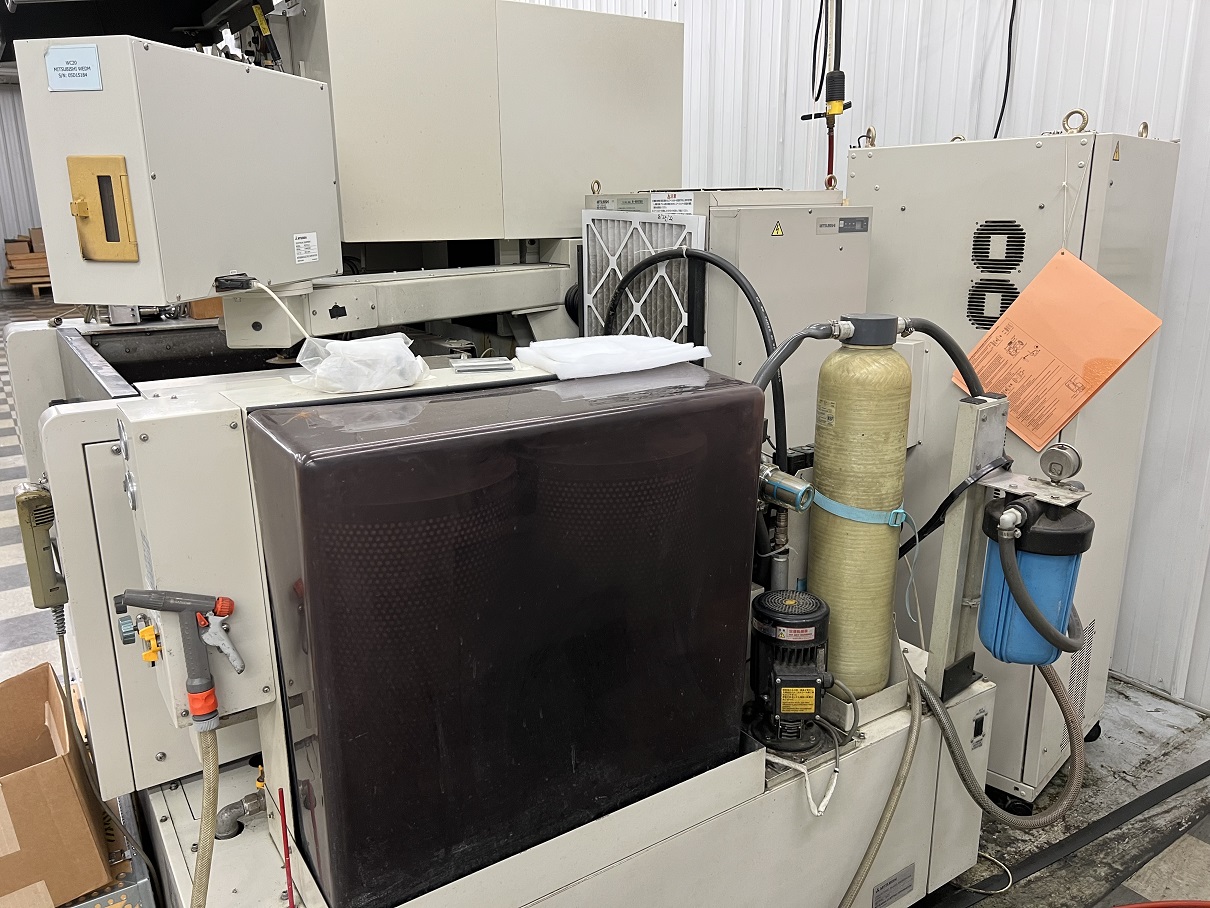

* Mitsubishi 64 Bit PC Based CNC Control * Submerged Machining Capability * Automatic Wire Threader (AT) * Automatic Fluid Level Control * Auto-Lock Vertical Tank Door Mechanism * Full 4-Sided Work Table * Color CRTWith 3D Graphics * Power Master Control (Automatically Adjusts Power Settings) * Inverter Controlled Flushing * Advanced Pendant Control * Fine-Grain Dianite Casting Material * Moving Column Design * Auto Lube System * Wire Chopper * Filtration System * Electric Chiller System: * Direct Drive 25mm Ball Screws * Linear Motion Guide Ways * Dual feedback with Glass Scales (X&Y) * Fine Resolution Encoder Feedback * AC Servo Drives * All Available Manuals, Disks, and Accessories ** Optional Consumable Starter Package $1,950 4 Spools of .010" Diameter Brass Wire - 13.2 lbs (1 case) 4 Filters - 5 Micron Paper Filter 1 Dual Canister DI Resin Cart w/ Prefilter 4 Resin Socks - 1/2 cu ft Regenerated Resin
