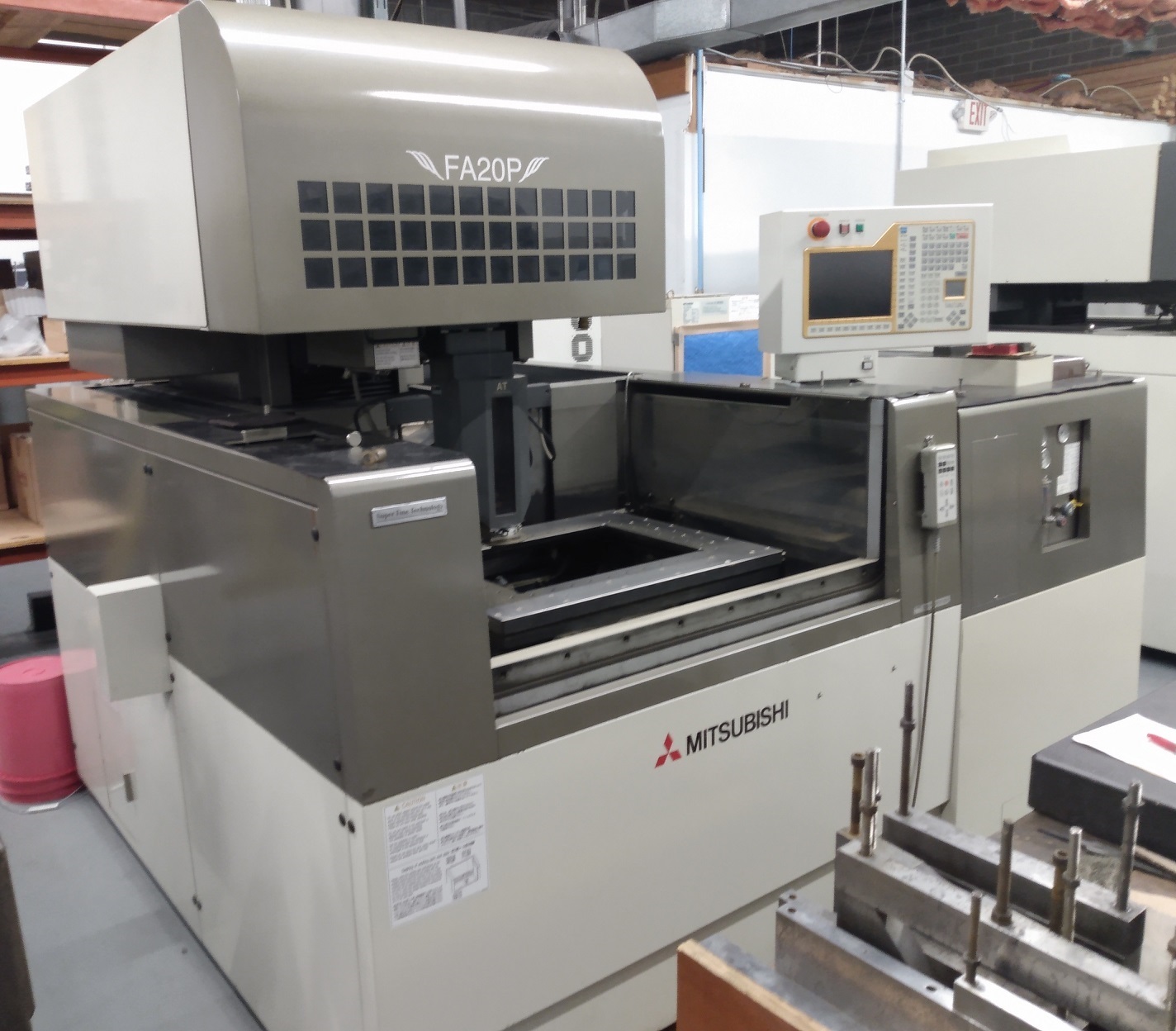

Mitsubishi FA-20P Wire EDM

Stock Number: 0474

Mitsubishi FA-20P

Age: 2003

Condition: As Is, Where Is

The FA Series is Mitsubishi Electric's newest wire EDM machine that supplies customers the optimum solution by incorporating the world's fastest technologies. This machine series sets new standards that thoroughly pursue the goal of "Fast, Easy, and Reliable" operation. It also showcases Mitsubishi's continuous dedication to high precision. The FA-P wire EDM machines combine high- accuracy, highspeed finishing, and automated cutting for fine detail. Advanced Friction Control (AFC) suppresses disturbances after fast feed and direction reversal, which provides high positioning and detailed accuracy. Total processing machine speed, roughing, and skimming time have been decreased with the FA-P series. A workpiece requiring a 6 microinch Ra finish now can be produced in 30 percent less time. When a 15 microinch Ra finish is required, only three cuts are needed. AE3-HS power supply helps increase carbide punch and die life by eliminating deterioration and reducing the depletion of the carbide binder. Features: * 10 Second Threading System * New-style Cut-wire Collection System * AT Device for Various Wire Types including Coated Wires * Wire Break-point Insertion and Submerged Threading * New-style Wire Tension System * AT Self-cleaning Process * VF Monitor - Real-time Cutting Speed Graphic * New-style Work Tank Seal Plate Mechanism

Click to view larger photo

Specification	Description
Machining Stroke ( X x Y x Z )	13.8" x 19.7" x 11.8"
Machining Stroke ( U x V )	+/- 1.25"
Maximum Workpiece Size	41.3" x 31.4" x 11.6"
Table Size	30.7" x 24.8"
Tank Dimensions	42" x 32" x 12"
Taper Capacity	+/-30 Degrees
Taper Angle @ Thickness	15 deg @ 3.93"
Maximum Workpiece Weight	3,300 lbs
Maximum Drive Unit / Resolution	0.00001mm / 2 Millionths
Min Hole Diameter	.02"
Wire Diameter Capability STD (Optional)	.008" - .012" (.004" - .006")
Wire Guides Included	.010"
Max. Wire Spool Size STD	22 lbs
Dielectric Water Capacity	190 gal
Electrical Requirements	200V-230V VAC/60Hz/3Ph 13.5KVa
Air Requirements	71-100 PSI w/2.7 cu ft/min
Approximate Machine System Dimensions	101.5" L x 104.3"W x 82.7"H
Approximate Machine System Weight	8,116 lbs

Equipped With:

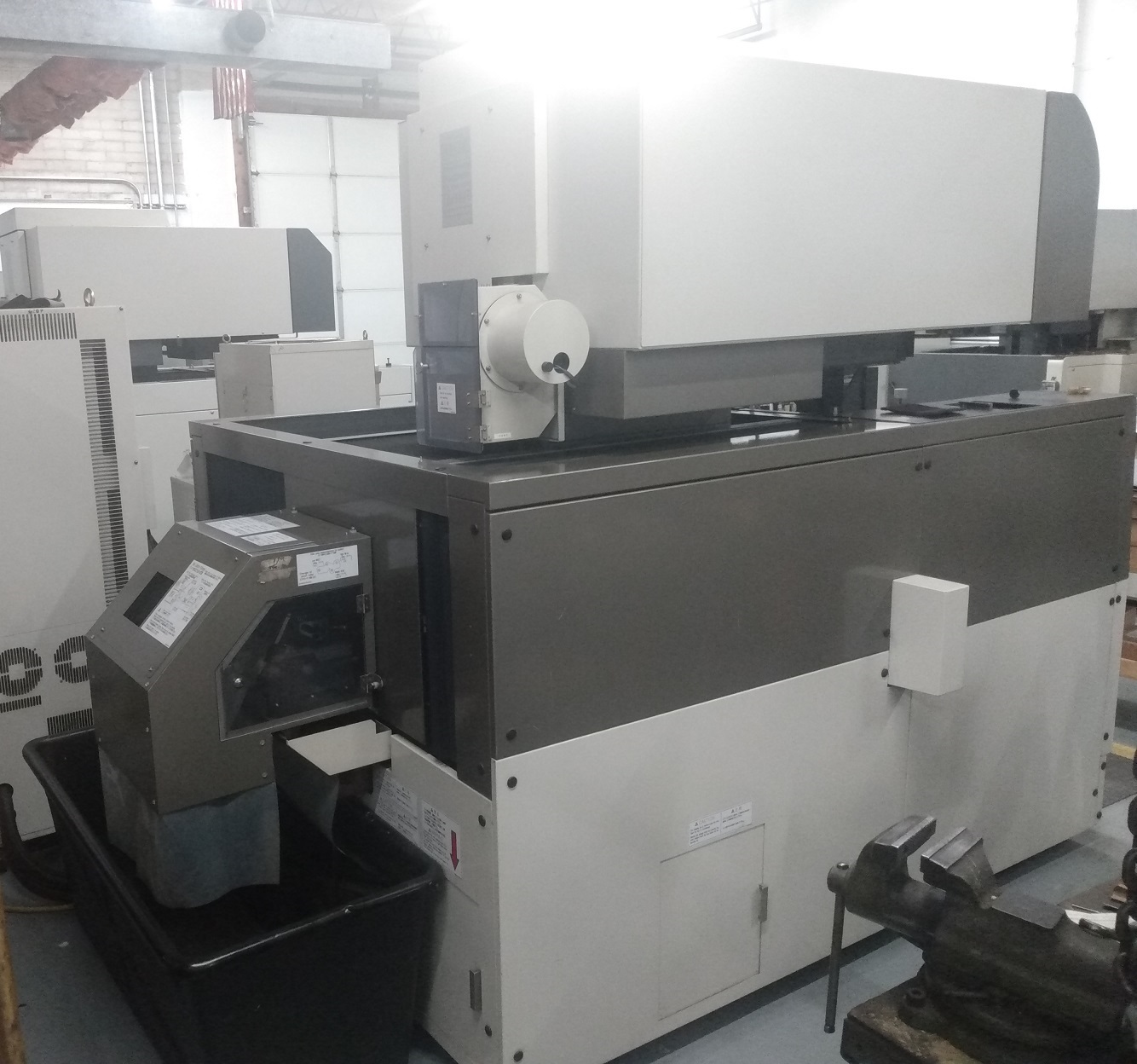

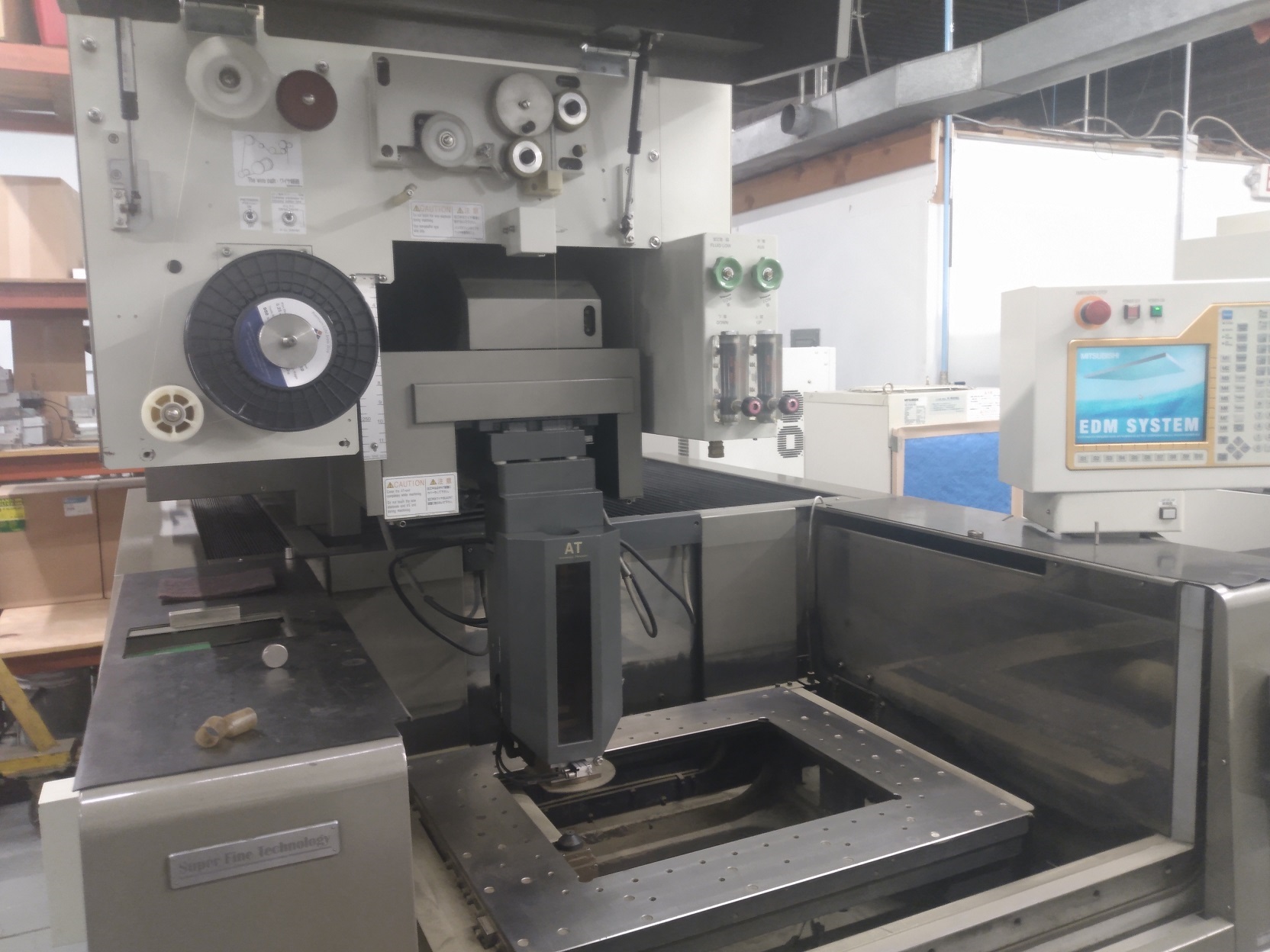

* Mitsubishi 64 Bit High-Speed CNC Control * Submerged Machining Capability * Automatic Wire Threader (AT) * Anti-Electrolysis Power Supply (AE3-HS) * Linear Glass Scales (XYUV) * 4-Sided Stainless Zeroline Table * Small Wire Device .004" - .006" (Does Not Include Guides) * Power Master 2 - Automatic Varying Part Thickness Optimization * Standard Remote Handcontrol * Wire Chopper * Corner Master II - Precision Corner Control * 3D Graphic Function * Ethernet DNC Hardware * All Stainless Steel Machine Tank & Fluid Tank * Auto Oiler * Electric Chiller * Filtration System * All Available System Disks, Manuals and Accessories
