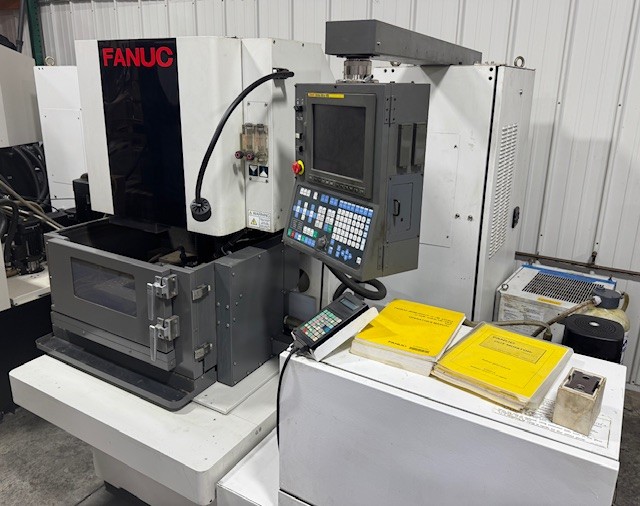

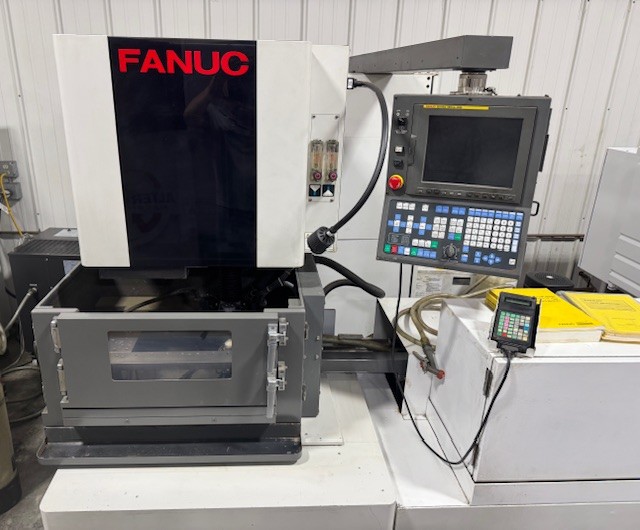

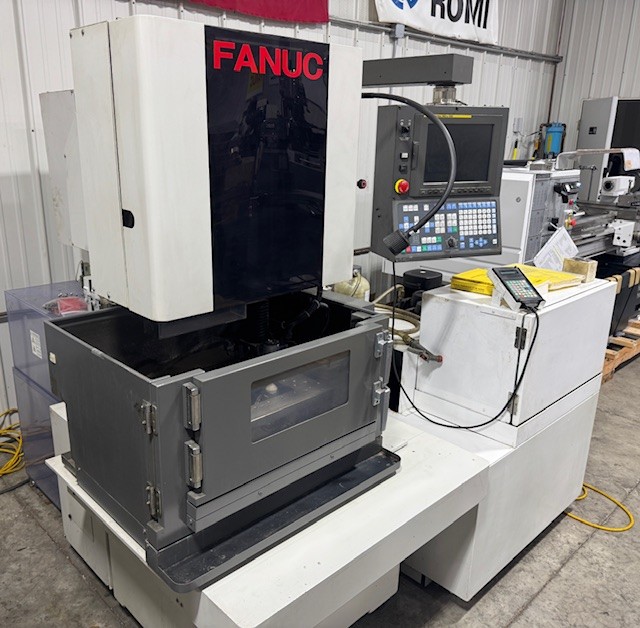

| Specification | Description |
|---|---|
| Maximum Work Piece Dimensions | 26.0" x 17.0" x 7.0" |
| Maximum Work piece Weight | 1,100 LBS |
| Table Dimensions | 21.0 x 14.0" (3-Sided) |
| Machine Range | 12.6" x 8.7" |
| U/V Travel | +/- 2.36" |
| Taper Angle | 30° @ 3.15" |
| Wire Diameter | .004" - .012" (.010" Guides) |
| Max. Work Piece AWF Height | 10.0" |
| Factory Rated Cutting Speed | 28 sq/in/hr |
| CNC Control | Fanuc 180is-WB – 5 Axis |
| Floor Space Required | 92" x 86" |
| Machine Weight | 4,000 LBS |
| Input Power (Total) | 200-220V, 3 Phase – 13 KVA |
