Charmilles Robofil 240SLP Wire EDM
Stock Number: 0485

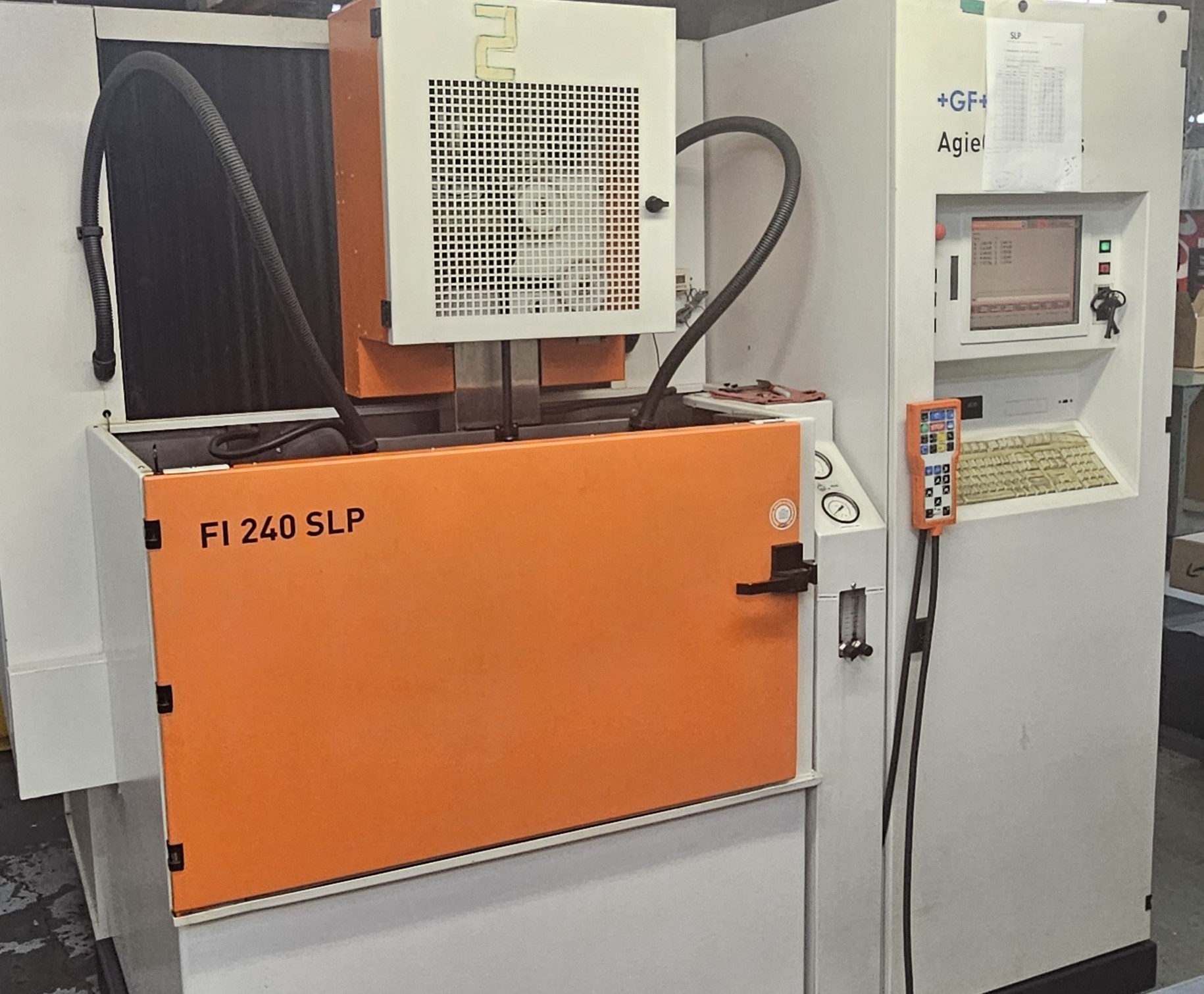

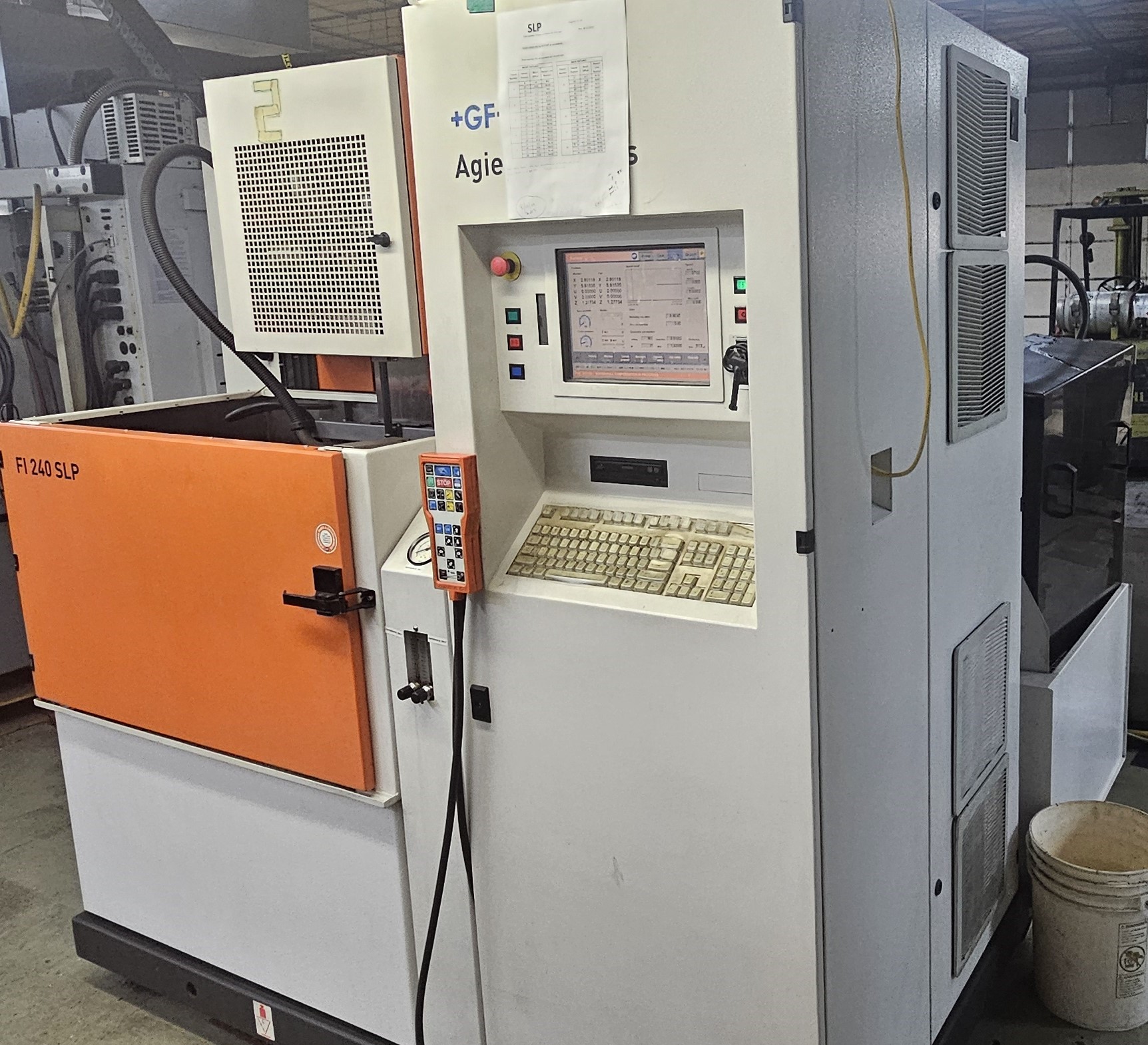

Charmilles Robofil 240SLP
Age: 2007
Condition: As Is, Where Is
Machine Features: The FI240SLP wire EDM center with a Micro-processor numerical control, for the automatic machining of workpieces from roughing to finishing, automatic execution of elementary machining operations, machining cycles, part programs and any other operation necessary between programs. Space saving compact design. Heavy workpiece design without the loss of accuracy
Low consumable cost filtration system. 30° taper capability at max Z height. 0.00002" resolution glass scales on all axes. Industrial speed of 28sq. inches/hour. Collision protection on all axes. Rhenocast base for thermo stability and vibration dampening.
Click to view larger photo
| Specification | Description |
|---|
| X, Y, Z Travels: | 13.77" x 8.66" x 8.66" |
| U, V Travel: | 13.77" x 8.66" |
| Maximum Taper Angle: | +/- 30 Deg / 8.66" |
| Table Dimensions: | 26.77" x 17.72" |
| Maximum Workpiece Dimensions: | 39.37" x 21.65" x 8.66" |
| Wire Diameter Capability: | .004" to .012" |
| Wire Guides Included: | .010" |
| Reservoir Capacity: | 201 Gallons |
| Power Supply: | 380/400 V , 10 KVA |
| Machine Dimensions: | 79.53" x 80.71" x 78.74" |
| Machine Weight: | 5,401 Lbs |
Equipped With:

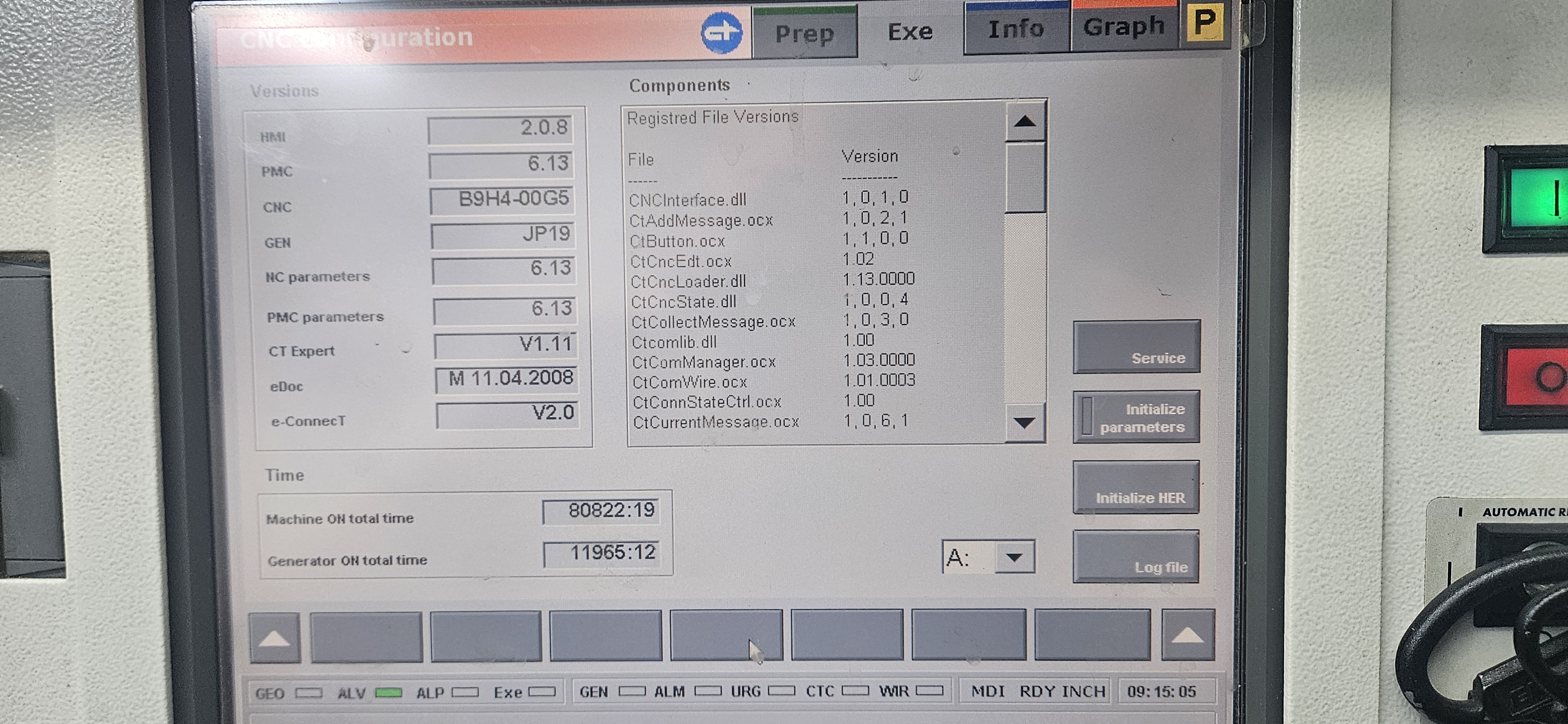

* Charmilles CT Millenium Controller
* Auto Wire Threader
* Submerged Cutting Capability
* Wire Chopper
* Rotary Indexer and Controller (Yukiwa)
* Auxilary M Function Option
* Electric Chiller
* Transformer
* All Available Manuals and Accessories
** Spare Parts Included -
(3) Carbide contacts Part No. 100342166
(1) 30mm knife Part No. 100434447-D
(2) 8mm knife Part No. 135001012-D
(3) Whistle #135009479
(1) set pinch rollers #100542999
(1) contact #200543838
(1) set bearings #135014820
(2) clip rings (machine needs 10 for change) #109227020
(1) brake belt #100447506
(1) lower headbelt #200543463
(1) lower head screw #209042114
(2) (new) upper guides .010" #100441423
(2) (used) upper guides .010 "100441423 (still good)
(1) (used) lower guide .010" #100430586 (still good)
