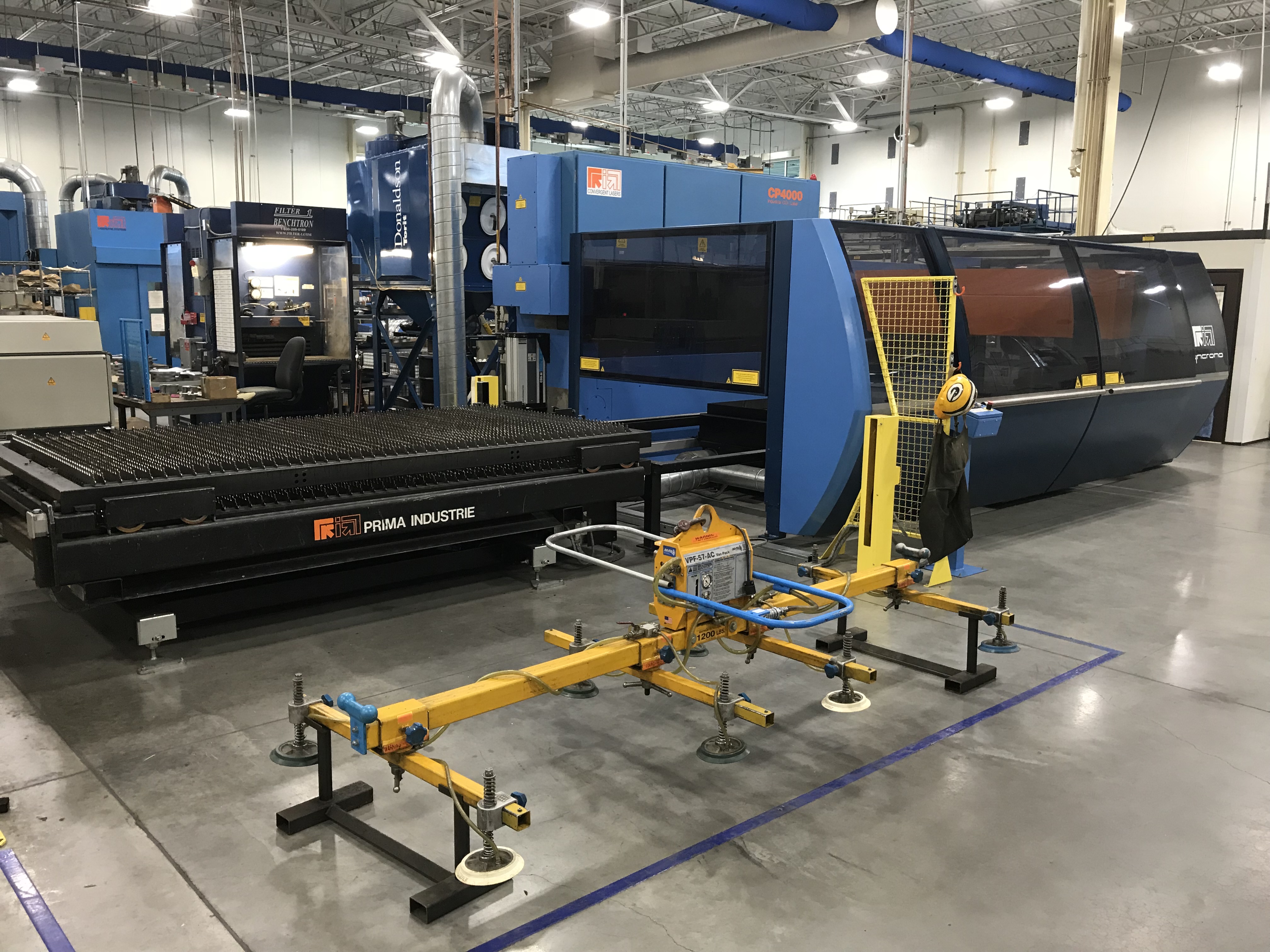

Prima Syncrono 1530 HS 4000 watt Laser Cutting System and Shuttle Table

Stock Number: 8019

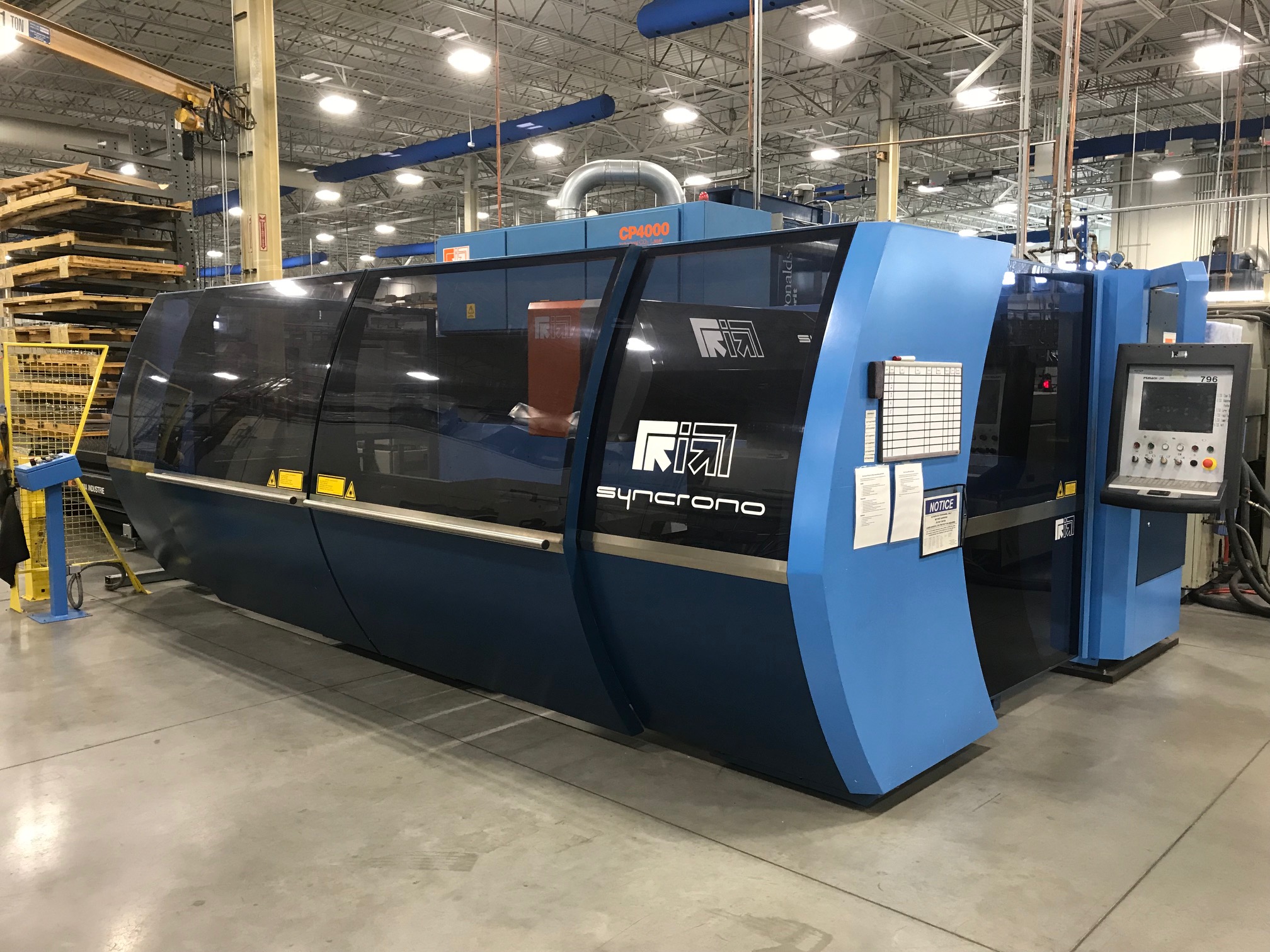

Prima Industrie Syncrono 1530

Age: 2006

Condition: As Is, Where Is

A highly reliable machine designed for machining steel sheets, it is a combination of high power, modern components and cutting precision, guaranteeing very smooth and even edges along the entire length of the workpiece. Machining of sheet metal is performed on a large work table, whose special guards protect the operator during work and prevent vibrations during changes in direction. All 5 axes (3 main axes and 2 local axes) are equipped with powerful Prima Electronics VFD 500 servo motors, ensuring high dynamics and high acceleration. The SYNCRONO 1530 laser cutting machine is offered with extensive equipment, including a Primach 20L CNC controller and a reliable Prima Convergent CP 4000 resonator.

Click to view larger photo

Specification	Description
Machine Axis Travels X,Y,Z	X-120" x Y- 60" x Z-5.1"
U/V Axis Travel	4"/ 4"
Max Individual Axis Speed (X, Y)	3,937 in/min
Max Axes Speed (Z)	1,968 in/min
Max Individual Local Axis Speed (U,V)	5,905 in/min
Linear Axis Resolution (X, Y)	0.00004 inches
Positioning Accuracy (Pa)	0.001 inches
Power Requirements	400 VAC ą10%, 3 phase + ground
Standard CO2 Laser Power	4000 Watts
Maximum Overall Dimensions	35.0' x 11.5' x 8.5'
Weight (approximate)	26,400 lbs.

Equipped With:
* CNC PRIMACH-20L Controller * Laser Resonator 4000 Watt * Compact Tower w/10 Shelves, Single shelf capacity 6,600 lbs Integrated over the Pallet Changer * Laser Ancillary Equipment (Water Chiller, Air Dryer) * Safety Enclosure * Cutting Head with Capacitive Sensing * Safe Impact Protection System * Automatic Focusing Control (F-axis) * Programmable High Pressure Assist Gas with Two Ports (300 psi) * Dual Pallet Shuttle Table * Uses NC Express programming software * Quick Pierce System * Laser Piercing Monitor * All Available Disks and Manuals
